Baugruppe

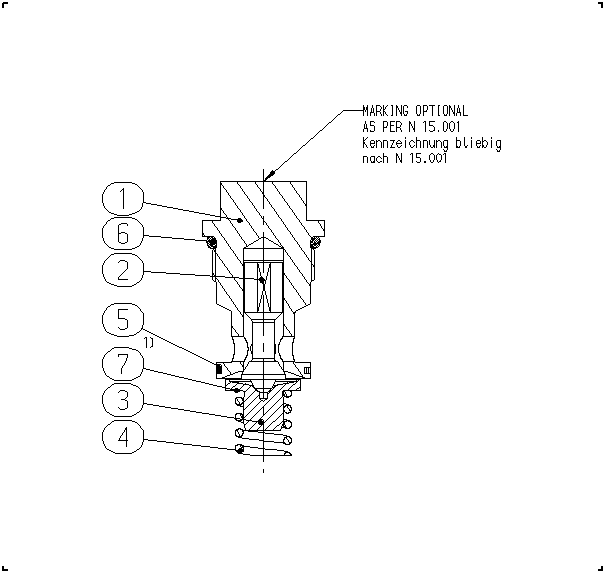

PRESSURE RELIEF VALVER902115333
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902107427 | SCREW PLUG | 1 | |
| R909435899 | VALVE SPOOL | 1 | ||
| 3 | R902010336 | SPRING DISK | 1 | |
| R902005892 | COMPRESSION SPRING | 1 | ||
| R902601678 | STEEL SEALING RING | 1 | ||
| 6 | R909083761 | O-RING | 1 | |
| 7 | R909150369 | SHIM RING | 1 | |
| 7 | R909150370 | SHIM RING | 1 | |
| 7 | R909153402 | SHIM RING | 1 |
