Baugruppe

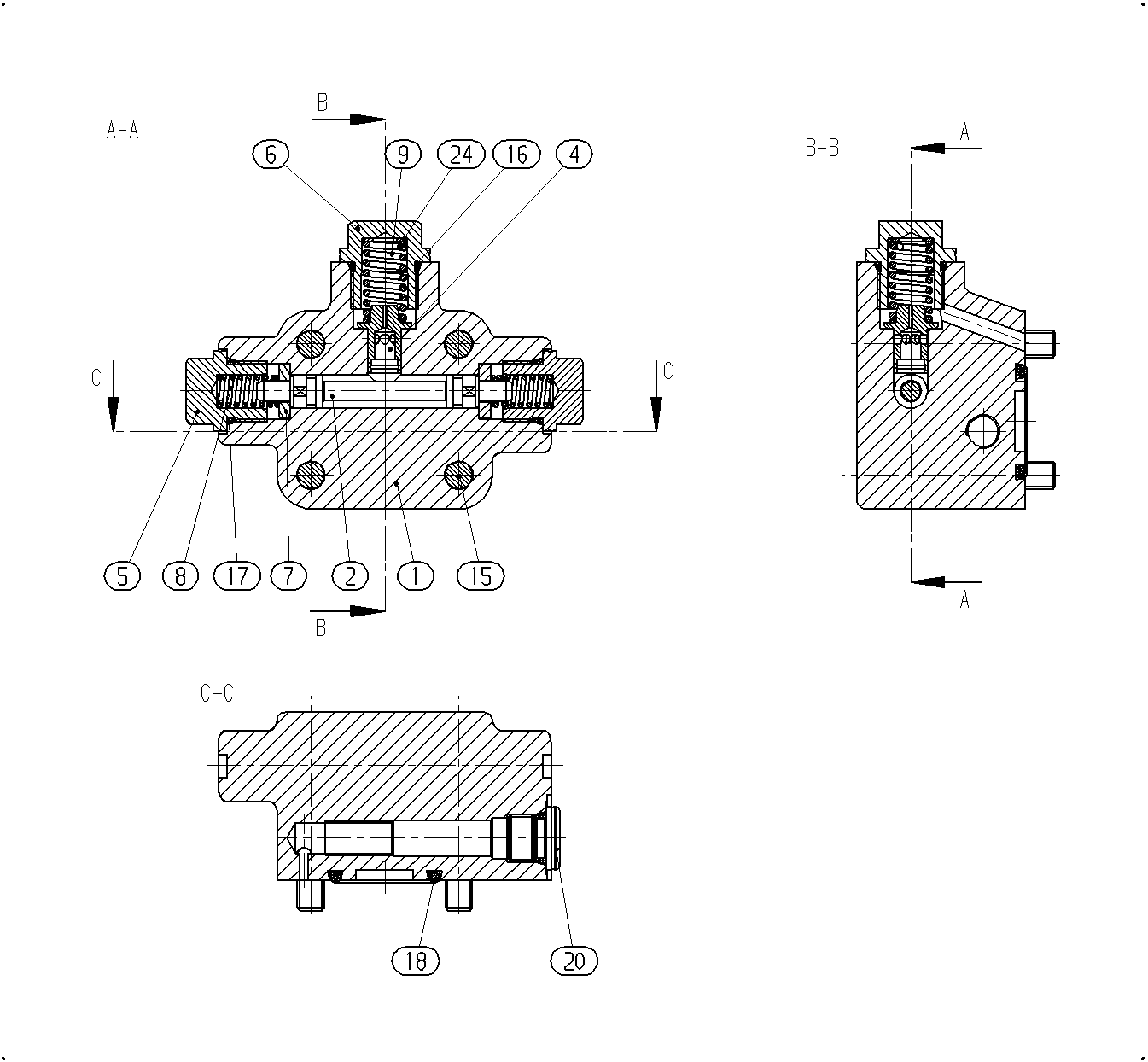

FLUSH/BOOST PRESSURE VALVER902115831
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902115835 | VALVE HOUSING | 1 | |
| 2 | R902000155 | FLUSHING PISTON | 1 | |
| R909430234 | VALVE SPOOL | 1 | ||
| R902242728 | SCREW PLUG | 2 | ||
| R902242727 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| 9 | R909417848 | COMPRESSION SPRING | 1 | |
| R909831514 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830862 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 2 | ||
| 18 | R909151882 | O-RINGD | 1 | |
| R909831482 | SCREW PLUGD | 1 | ||
| R909157079 | SHIM RING | 1 | ||
| R909157965 | SHIM RING | 1 | ||
| R909157966 | SHIM RING | 1 |
