Baugruppe

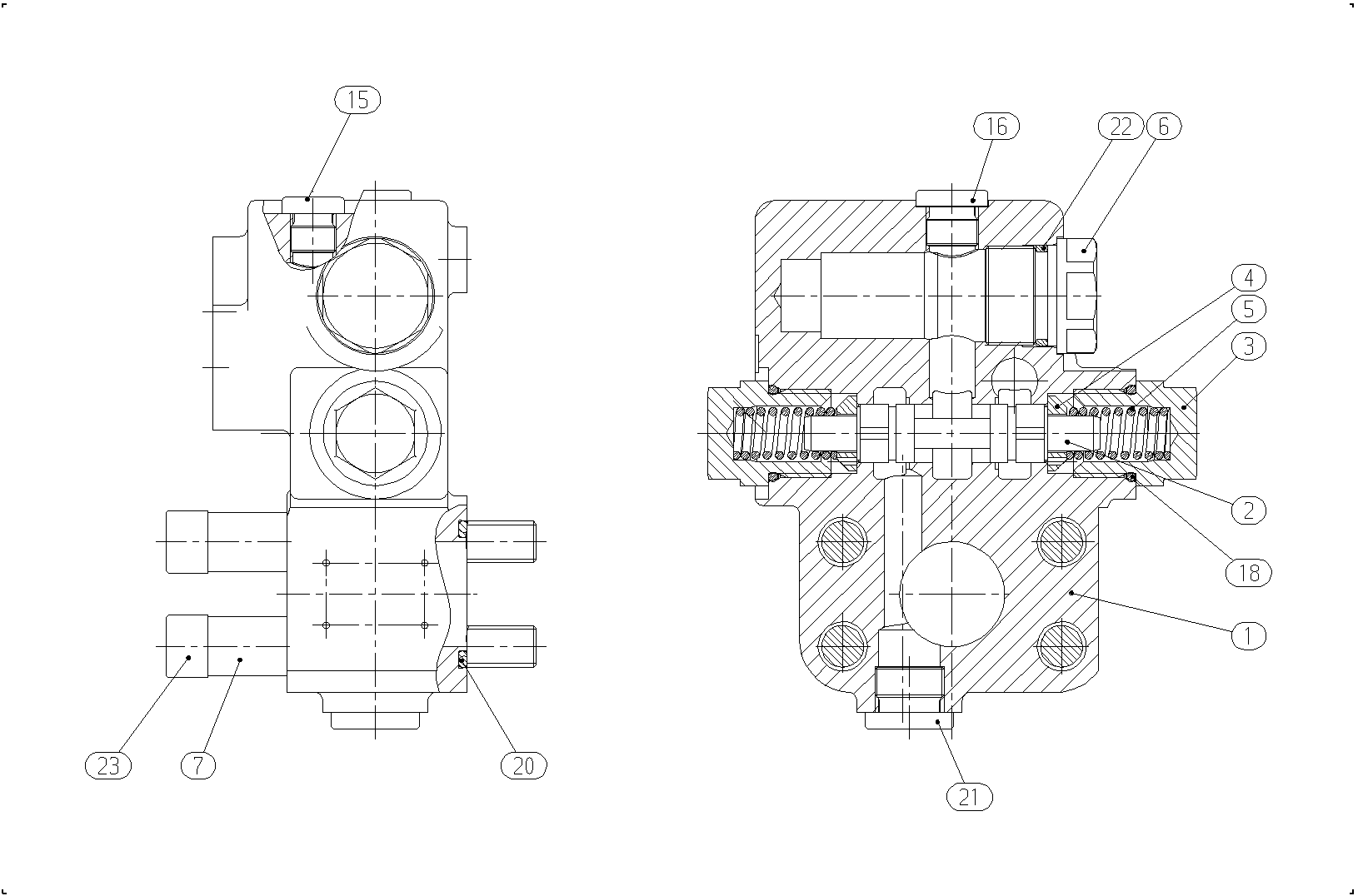

FLUSH/BOOST PRESSURE VALVER902120657
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902083457 | HOUSING | 1 | |
| R909445139 | FLUSHING PISTON | 1 | ||
| R902128654 | SCREW PLUG | 2 | ||
| R909445140 | SPRING DISK | 2 | ||
| 5 | R902128653 | COMPRESSION SPRING | 2 | |
| R902120651 | SCREW PLUG | 1 | ||
| R902128745 | SPACER BUSHING | 4 | ||
| 15 | R909151979 | SCREW PLUG | 1 | |
| R909153816 | SCREW PLUGD | 1 | ||
| R909830867 | O-RINGD | 2 | ||
| R909083809 | O-RINGD | 1 | ||
| R913011603 | SCREW PLUG | 1 | ||
| 22 | R909083763 | O-RING | 1 | |
| 23 | R902603672 | SOCKET HEAD CAP SCREW | 4 |
