Baugruppe

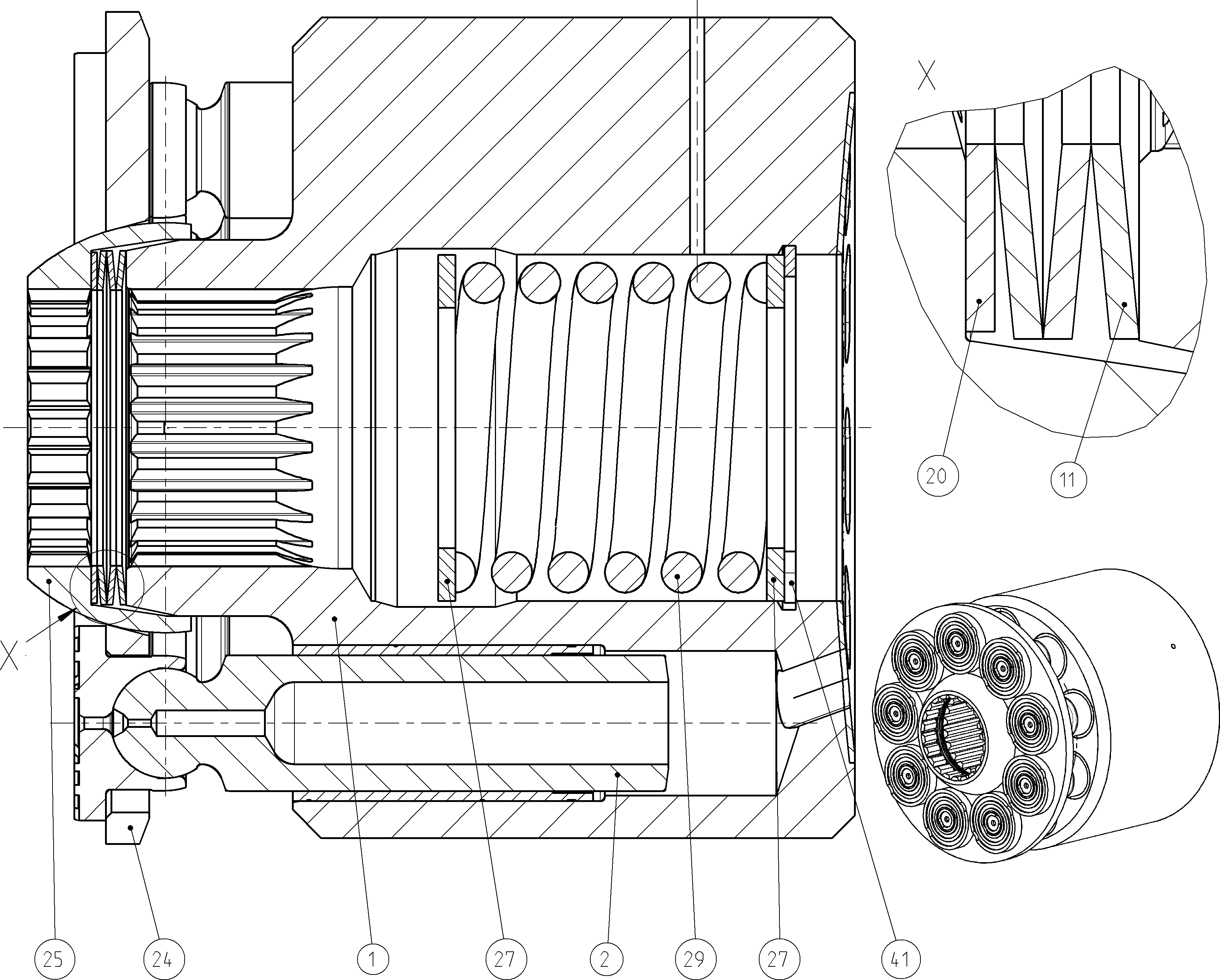

ROTARY GROUPR902121230
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902114100 | CYLINDER | 1 | ||
| R902118530 | PISTON PAD | 9 | ||
| R902188088 | CUP-SPRING STACK | 1 | ||
| R902096234 | SHIM RING | 1 | ||
| R902096235 | SHIM RING | 1 | ||
| R902096236 | SHIM RING | 1 | ||
| R902096237 | SHIM RING | 1 | ||
| R902205415 | RETAINING PLATE | 1 | ||
| R902240835 | RETAINING BALL | 1 | ||
| R902081969 | WASHER | 2 | ||
| R902096389 | COMPRESSION SPRING | 1 | ||
| R909151260 | RETAINING RING | 1 |
