Baugruppe

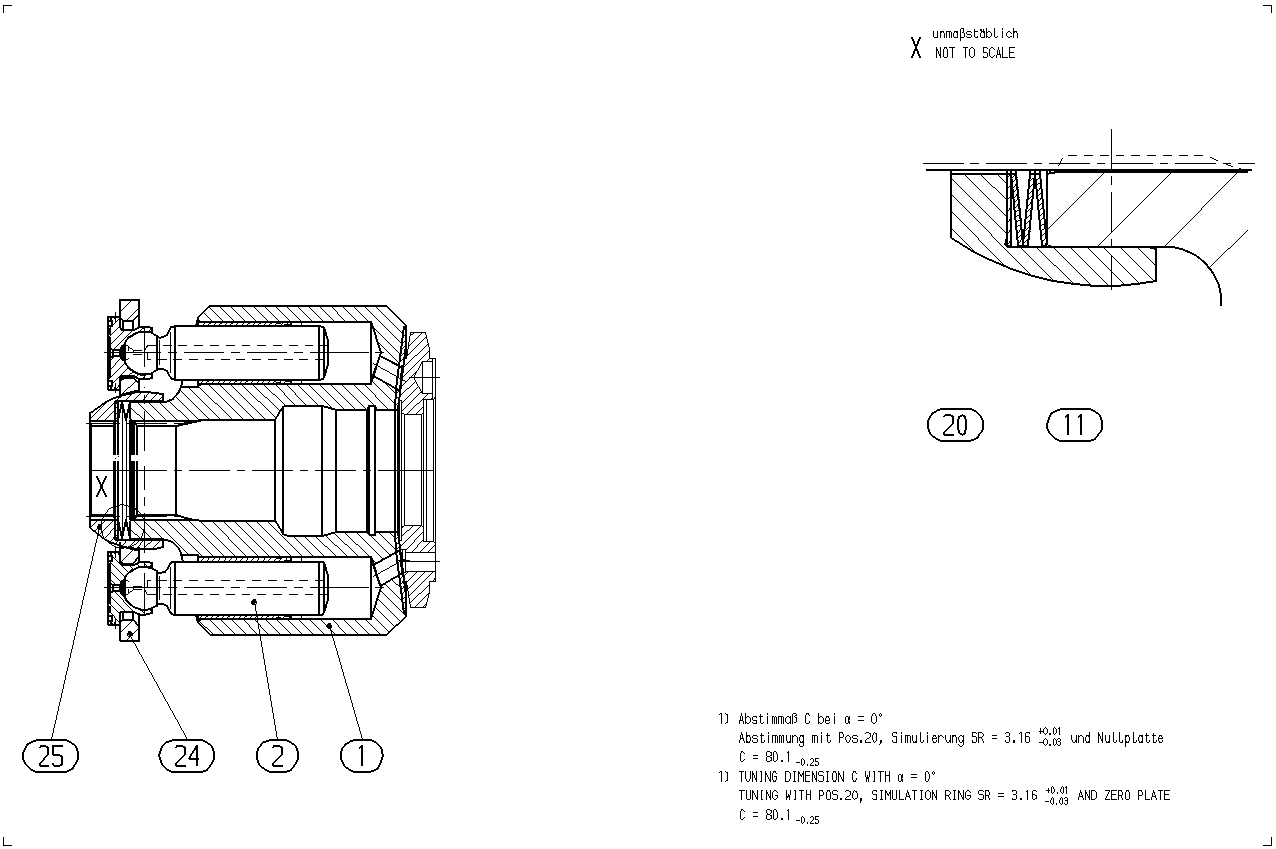

ROTARY GROUPR902121247
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902047961 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| R902118818 | PISTON PAD | 9 | ||
| R902121243 | CUP-SPRING STACK | 1 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R902205499 | RETAINING PLATE | 1 | ||
| R902118837 | RETAINING BALL | 1 | ||
| 27 | R909922004 | WASHER | 2 | |
| 29 | R909921997 | COMPRESSION SPRING | 1 | |
| 41 | R909083393 | RETAINING RING | 1 |
