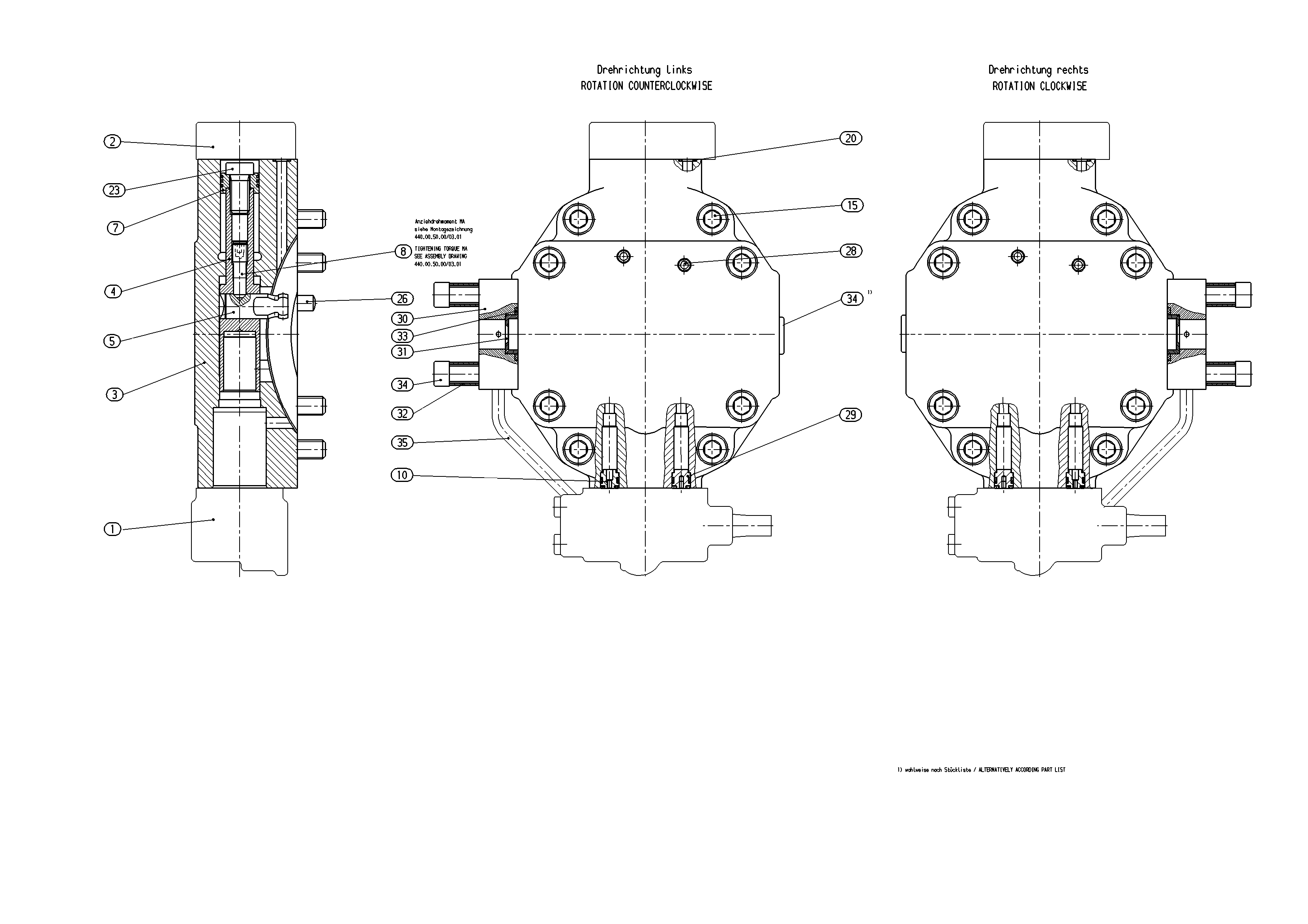

Baugruppe
CONTROLR902121859
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902121860 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909603764 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902132175 | COVER PLATE | 1 | ||
| R909921439 | POSITIONING PISTON | 1 | ||
| R909422940 | POSITIONING STUD | 1 | ||
| R902102899 | PISTON | 1 | ||
| R909445056 | SETSCREW | 1 | ||
| R902110209 | PLUG | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085577 | O-RINGD | 3 | ||
| R909083197 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902110208 | PLUG | 1 | ||
| R909420531 | ORIFICE FLANGE | 1 | ||
| R902084437 | ORIFICE | 1 | ||
| R909071215 | DISTANCE PIPE | 2 | ||
| R909151882 | O-RINGD | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R902130975 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 |
