Baugruppe

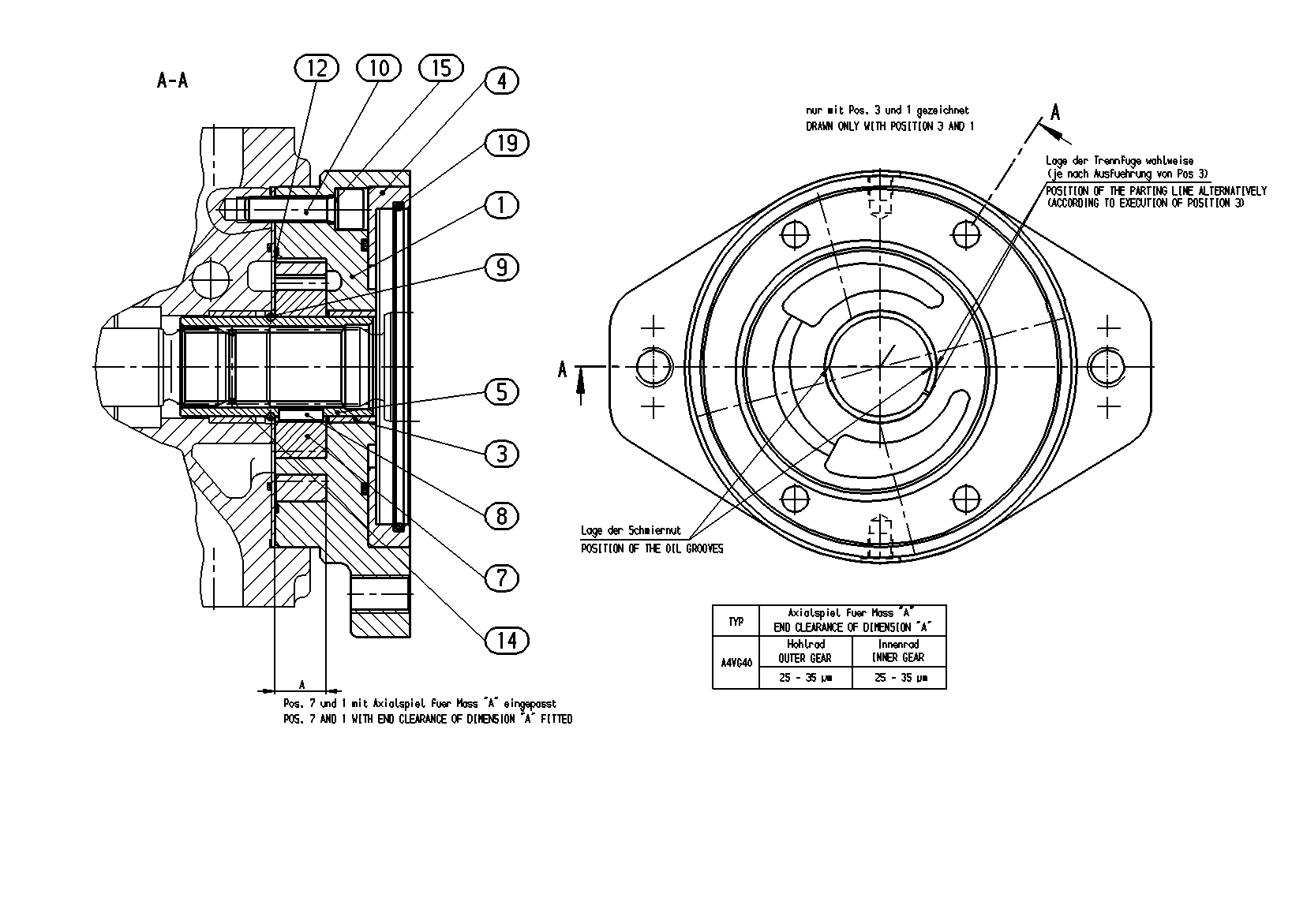

INTERNAL GEAR PUMPR902127194
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902080198 | INTERMEDIATE FLANGE | 1 | ||
| R902260545 | BUSHING | 1 | ||
| 4 | R909444103 | INTERMEDIATE RING | 1 | |
| R902252296 | THROUGH DRIVE SHAFT | 1 | ||
| R902006255 | WHEEL SET | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| 9 | R913057533 | SNAP RING | 1 | |
| R909083040 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601472 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R913032365 | O-RINGD | 1 | ||
| 20 | R913054822 | BURL SEAL RING | 1 |
