Baugruppe

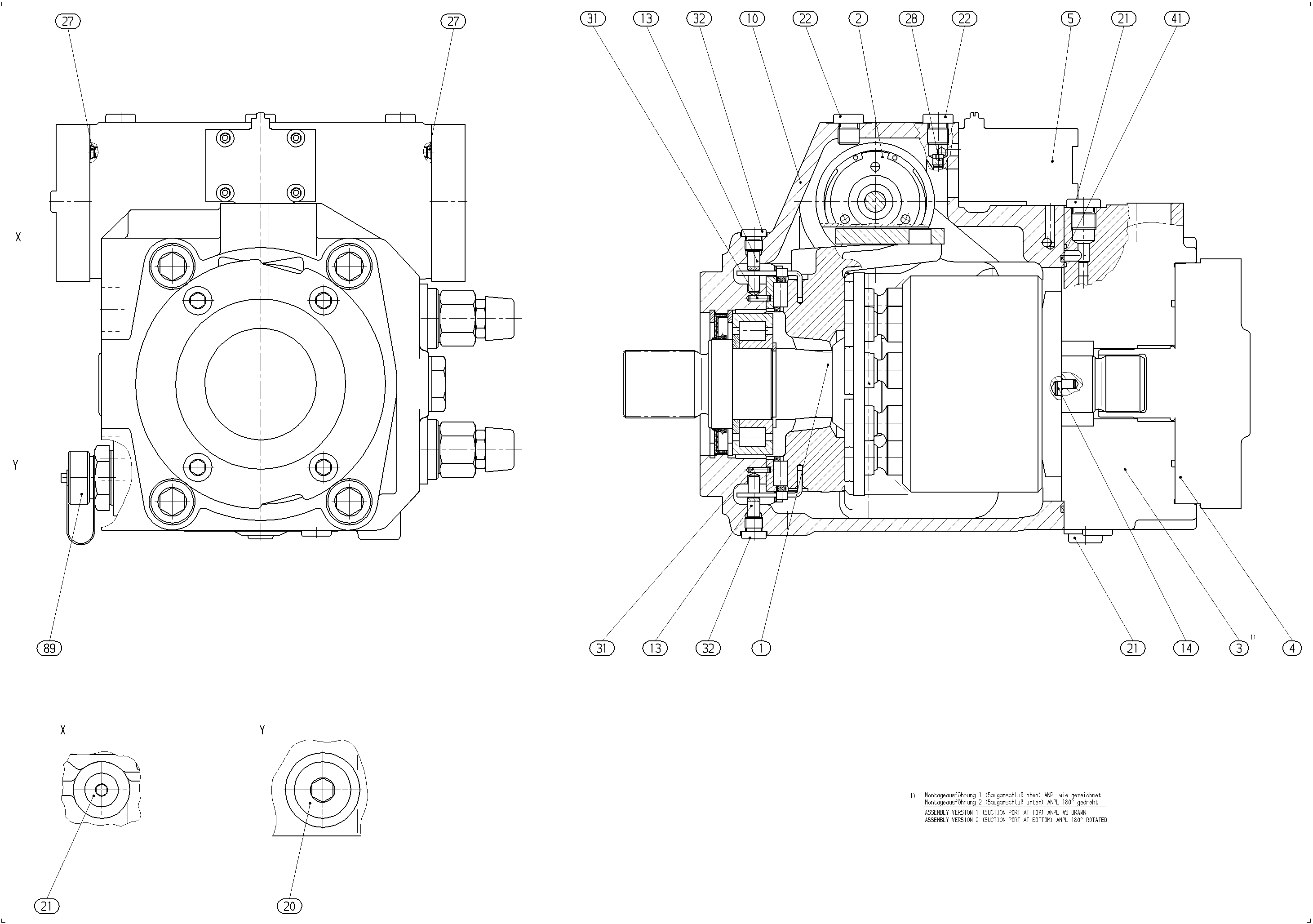

AXIAL-PISTON PUMPR902127225
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902102155 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902019518 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909613515 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902022568 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902031253 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902020375 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R913010392 | DRAIN VALVE | 1 |
