Baugruppe

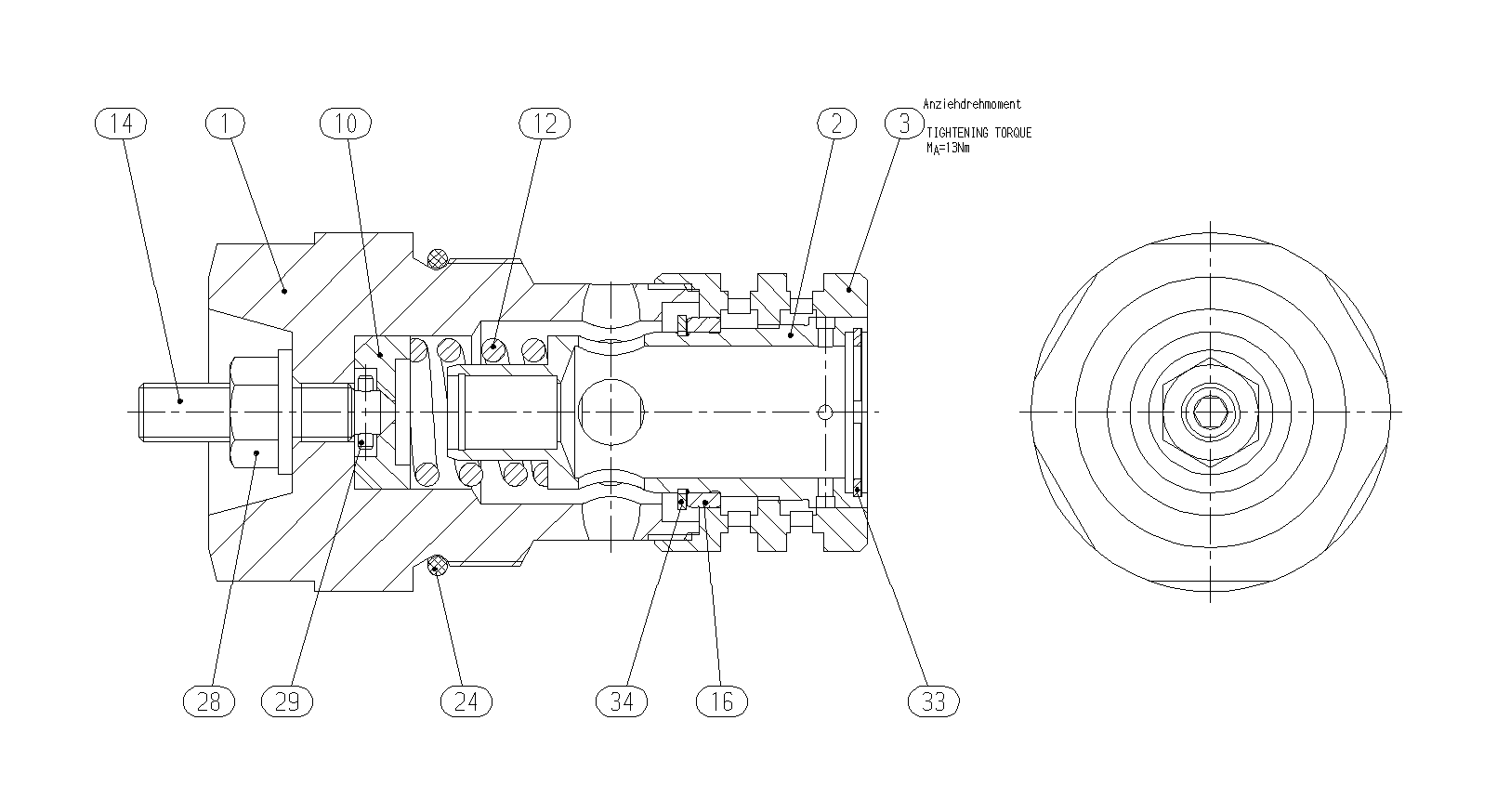

CONTROL CARTRIDGER902128957
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909439185 | CONTROL SCREW | 1 | ||
| R909922154 | DIFFERENTIAL PISTON | 1 | ||
| R909922155 | CONTROLLER PIPE | 1 | ||
| R902066055 | THRUST MEMBER | 1 | ||
| R909407828 | COMPRESSION SPRING | 1 | ||
| R909436564 | SETSCREW | 1 | ||
| R909445441 | RING | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R900017297 | SLOTTED SPRING PIN | 1 | ||
| R909083386 | V-RING | 1 | ||
| R909830070 | V-RING | 1 |
