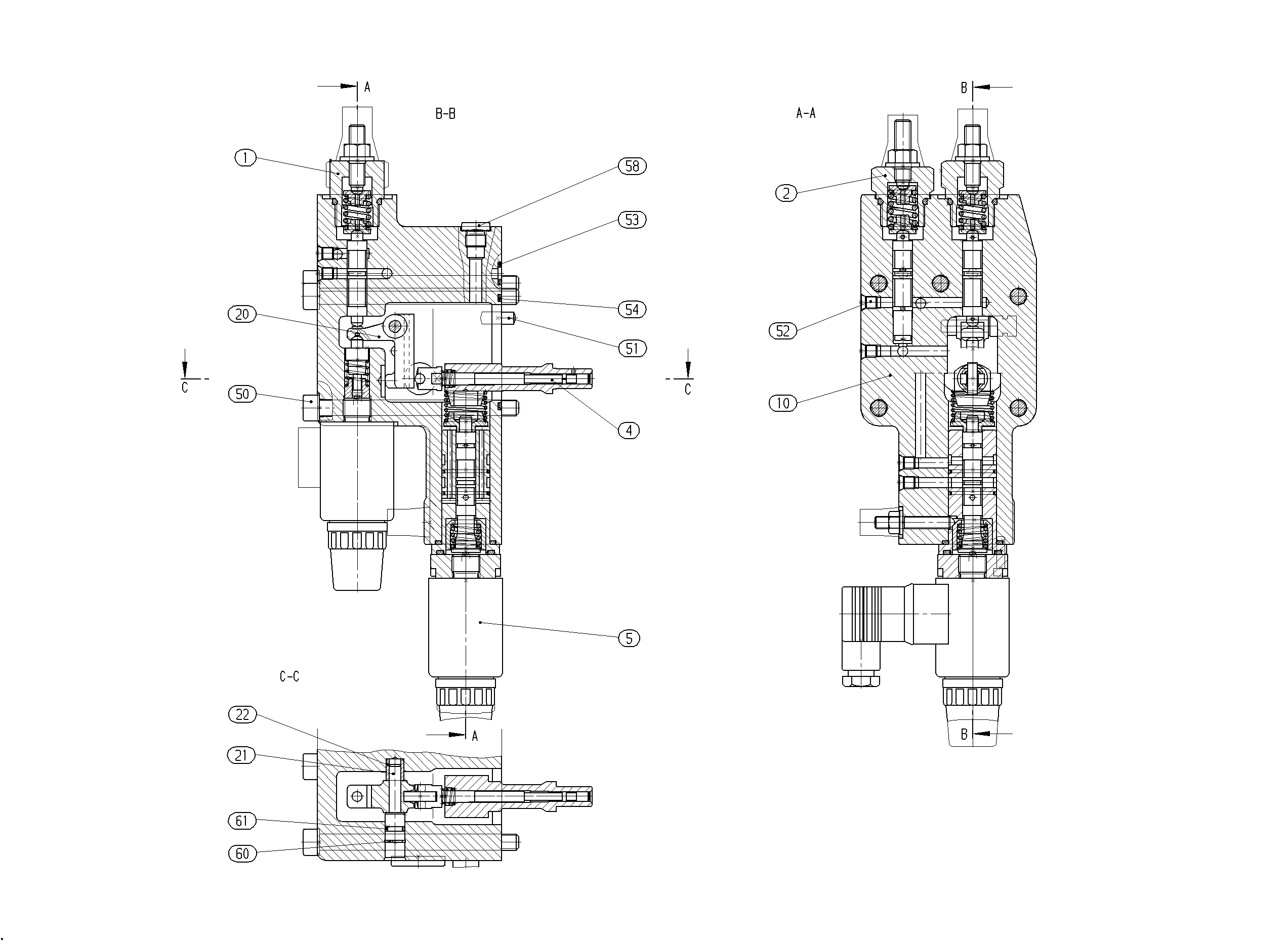

Baugruppe
REGULATORR902133015
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902133012 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902081425 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902080304 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| 5 | R902136053 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| R902134480 | CONTROL HOUSING | 1 | ||
| 20 | R909445555 | ANGLE LEVER | 1 | |
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083053 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RINGD | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
