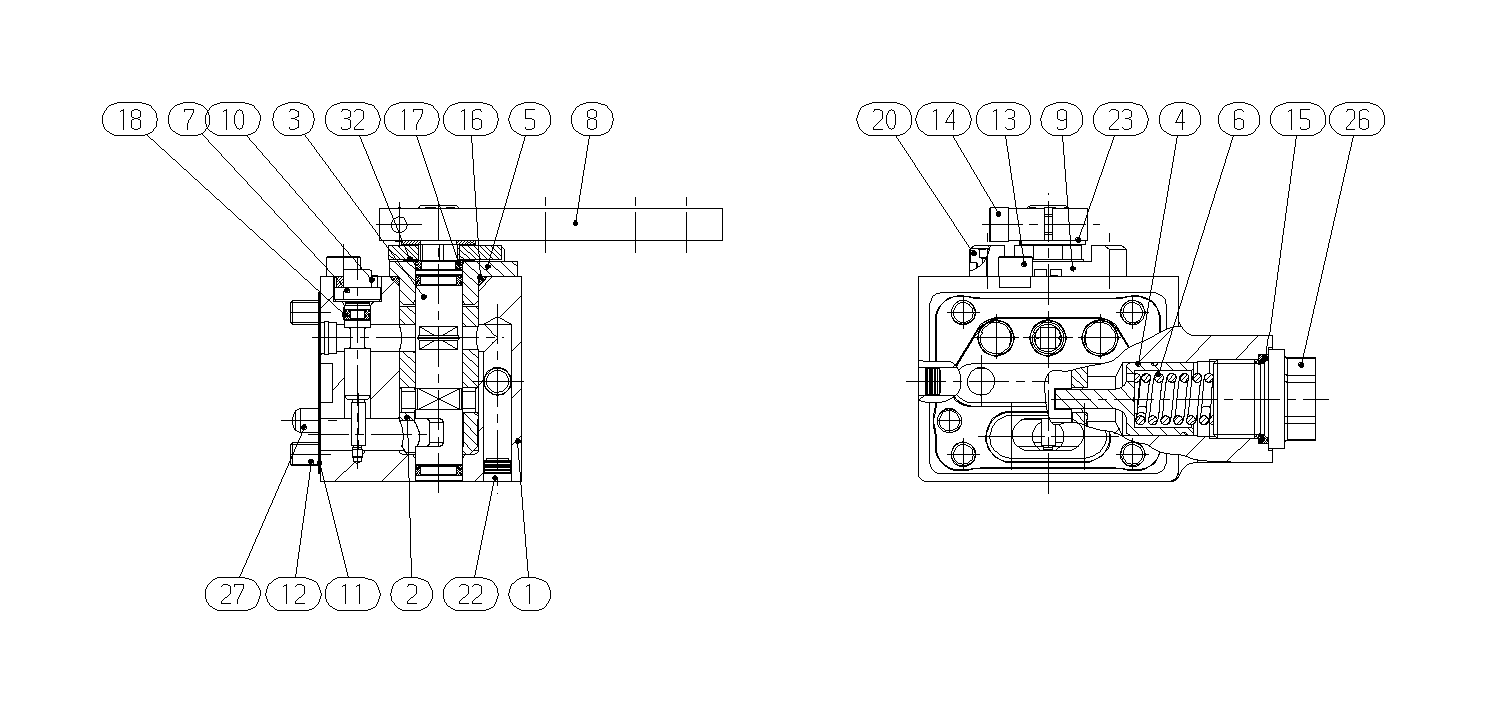

Baugruppe
BASIC UNITR902133505
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902133549 | HOUSING | 1 | ||
| R902104717 | CONTROL SLEEVE | 1 | ||
| R902120940 | CONTROL SHAFT | 1 | ||
| R909650254 | SPRING BUSH | 1 | ||
| R902025490 | COVER | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R902115436 | ECCENTRIC PIN | 1 | ||
| R909650273 | LEVER | 1 | ||
| R902025491 | STOP PIECE | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902603825 | SEALD | 1 | ||
| R909084385 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909083728 | O-RINGD | 3 | ||
| R909086301 | O-RING | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603686 | SEALING PLUG | 2 | ||
| R909085131 | LOCKING WASHER | 1 | ||
| R909086753 | SCREW PLUG | 1 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R902600768 | SHIM RING | 1 |
