Baugruppe

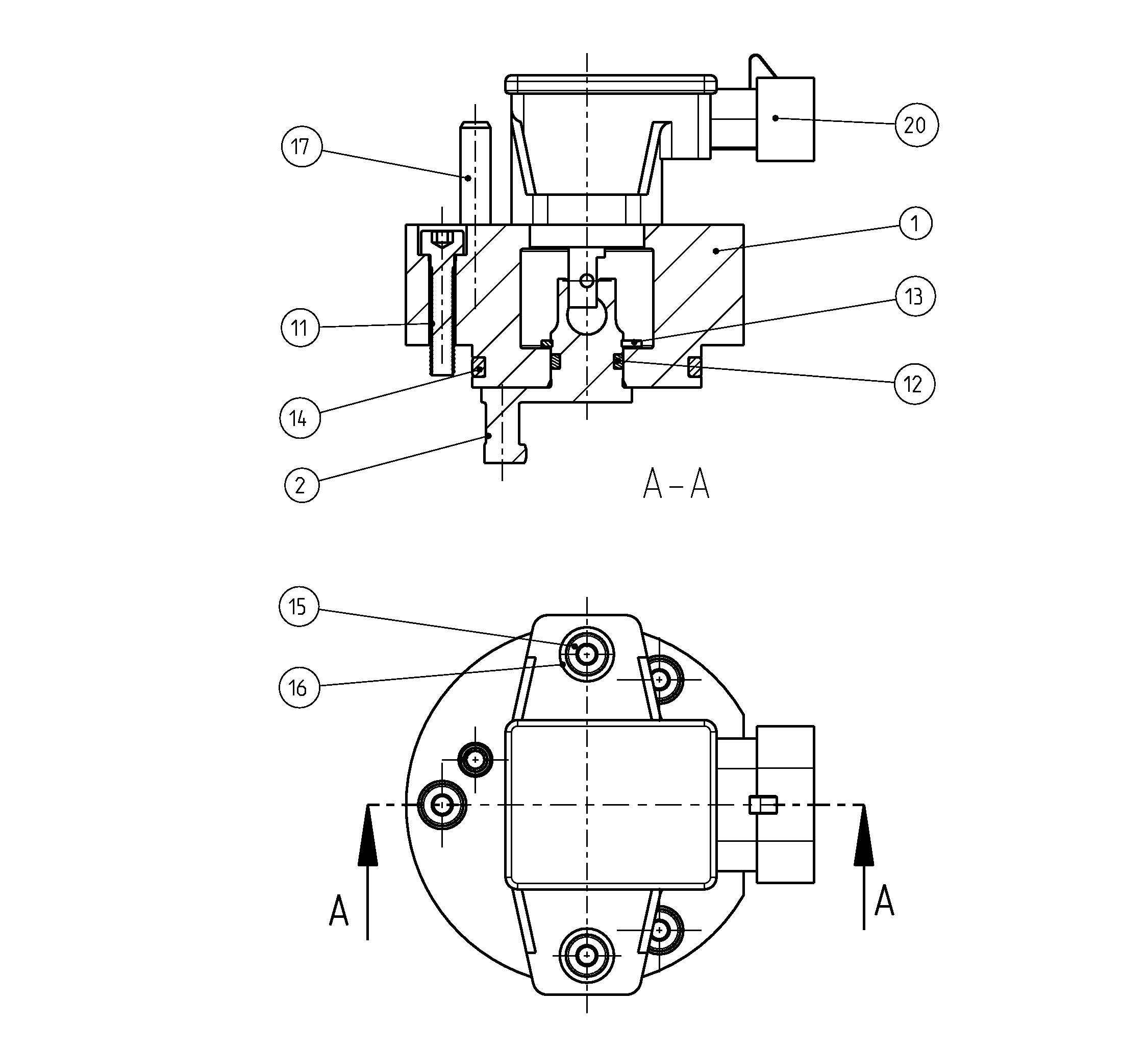

SWIVEL ANGLE SENSORR902133575
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902133574 | SENSOR HOUSING | 1 | |
| R902084604 | SENSOR SHAFT | 1 | ||
| 11 | R902215517 | SOCKET HEAD CAP SCREW | 3 | |
| R909083728 | O-RING | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| 14 | R909086730 | O-RING | 1 | |
| R909083003 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010109 | WASHER | 2 | ||
| 17 | R909153242 | SLOTTED SPRING PIN | 1 | |
| R902603774 | ROT. ANGLE SENSOR | 1 |
