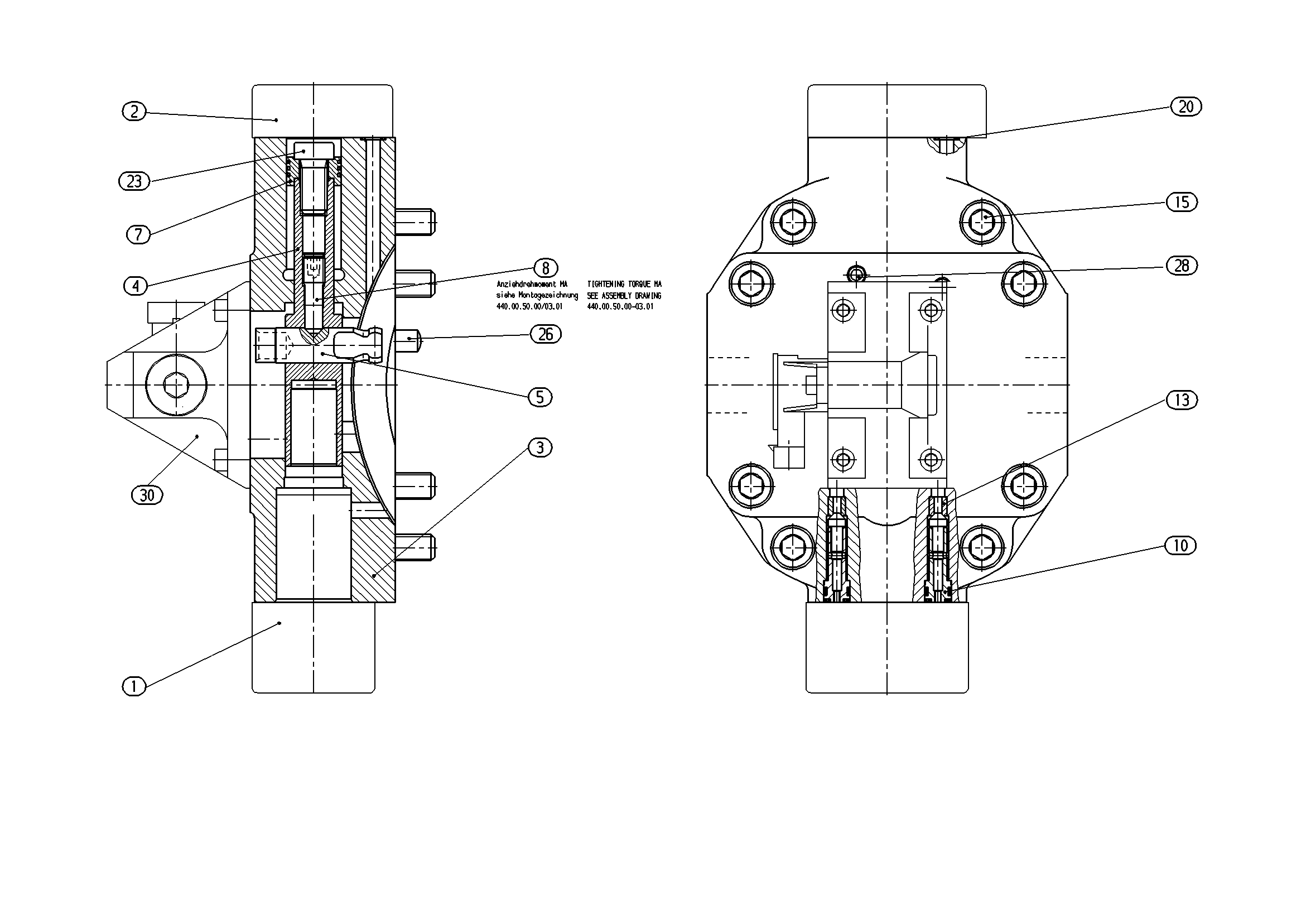

Baugruppe
CONTROLR902134916
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902189207 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909603848 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902119632 | COVER PLATE | 1 | ||
| R902101481 | POSITIONING PISTON | 1 | ||
| R902119633 | POSITIONING STUD | 1 | ||
| 7 | R902102905 | PISTON | 1 | |
| R902101482 | SETSCREW | 1 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R902209845 | BUSHING | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909085577 | O-RINGD | 6 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902138271 | SWIVEL ANGLE SENSOR Stückliste der Baugruppe →L | 1 |
