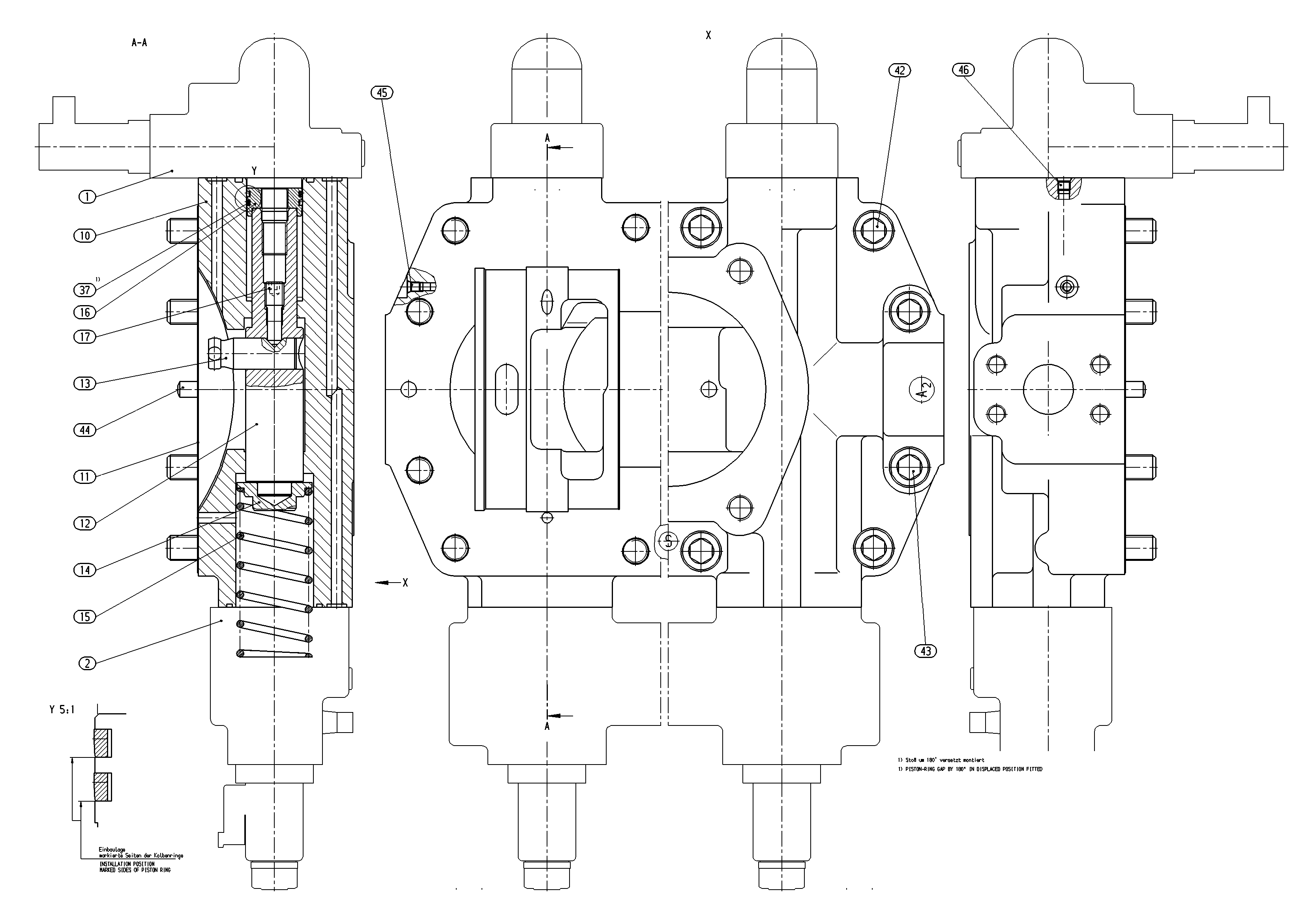

Baugruppe
CONTROLR902139909
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902132429 | COVER Stückliste der Baugruppe →L | 2 | ||
| R902139910 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| R902139942 | CONTROL HOUSING | 1 | ||
| R902031863 | SEALD | 1 | ||
| R909921021 | POSITIONING PISTON | 2 | ||
| R909425458 | POSITIONING STUD | 2 | ||
| R902086550 | SPRING DISK | 2 | ||
| R909432558 | COMPRESSION SPRING | 2 | ||
| R902086612 | PISTON | 2 | ||
| R909445016 | SETSCREW | 2 | ||
| R910921092 | PISTON RING | 4 | ||
| R909083136 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
