Baugruppe

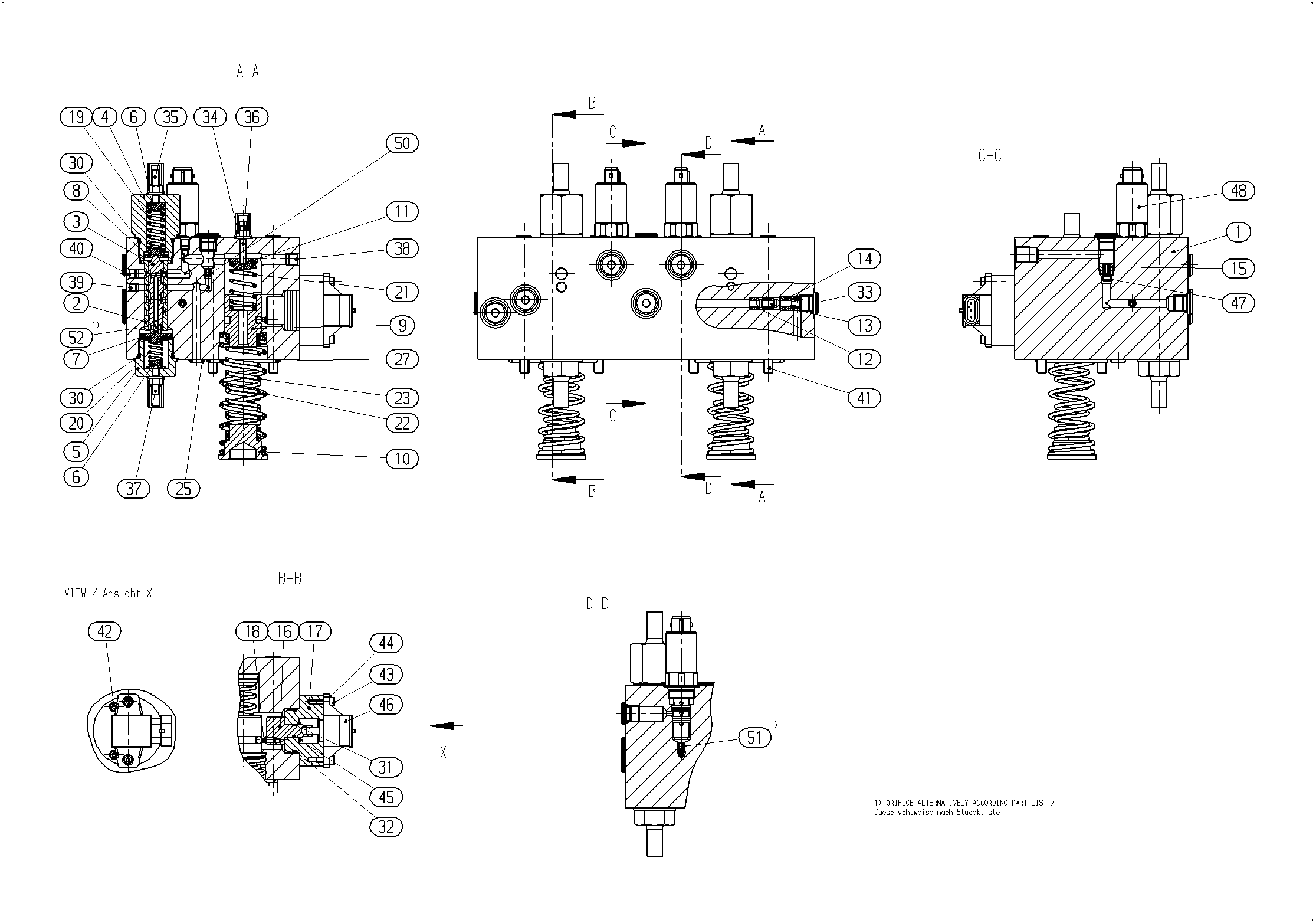

CONTROL UNITR902151893
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902151682 | CONTROL HOUSING | 1 | ||
| R902151736 | CONTROL SLEEVE | 2 | ||
| R902151734 | CONTROL PISTON | 2 | ||
| R902151746 | SCREW PLUG | 2 | ||
| R902151747 | SCREW PLUG | 2 | ||
| R909431526 | SPRING DISK | 4 | ||
| R902151748 | SPRING DISK | 2 | ||
| R902151742 | SPRING DISK | 2 | ||
| R902151745 | SPRING DISK | 2 | ||
| R902151744 | SPRING DISK | 2 | ||
| R902151749 | SPRING DISK | 2 | ||
| R909425801 | BUSHING | 2 | ||
| R909436407 | VALVE CONE | 2 | ||
| R909431990 | VALVE BUSHING | 2 | ||
| R902151772 | THREADED RING | 1 | ||
| R902151680 | SENSOR SHAFT | 2 | ||
| R902151760 | SENSOR HOUSING | 2 | ||
| R910969436 | BALL STUD | 2 | ||
| R902151874 | COMPRESSION SPRING | 2 | ||
| R902151875 | COMPRESSION SPRING | 2 | ||
| R902151873 | COMPRESSION SPRING | 2 | ||
| R902151876 | COMPRESSION SPRING | 2 | ||
| R902151872 | COMPRESSION SPRING | 2 | ||
| R902600655 | O-RING | 6 | ||
| R909151810 | O-RING | 2 | ||
| R909083764 | O-RING | 4 | ||
| R909083728 | O-RING | 2 | ||
| R909086730 | O-RING | 2 | ||
| R909831482 | SCREW PLUG | 12 | ||
| R909152425 | SEALING NUT | 6 | ||
| R909154140 | SETSCREW | 2 | ||
| R909157096 | SETSCREW | 2 | ||
| R909153284 | SETSCREW | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 9 | ||
| R909085702 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083005 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| 2916010109 | WASHER | 4 | ||
| R909083346 | RETAINING RING | 2 | ||
| R902601927 | ROT. ANGLE SENSOR | 2 | ||
| R913005474 | FILTER | 1 | ||
| R902602107 | PRESSURE REDUCING VALVE | 2 |
