Baugruppe

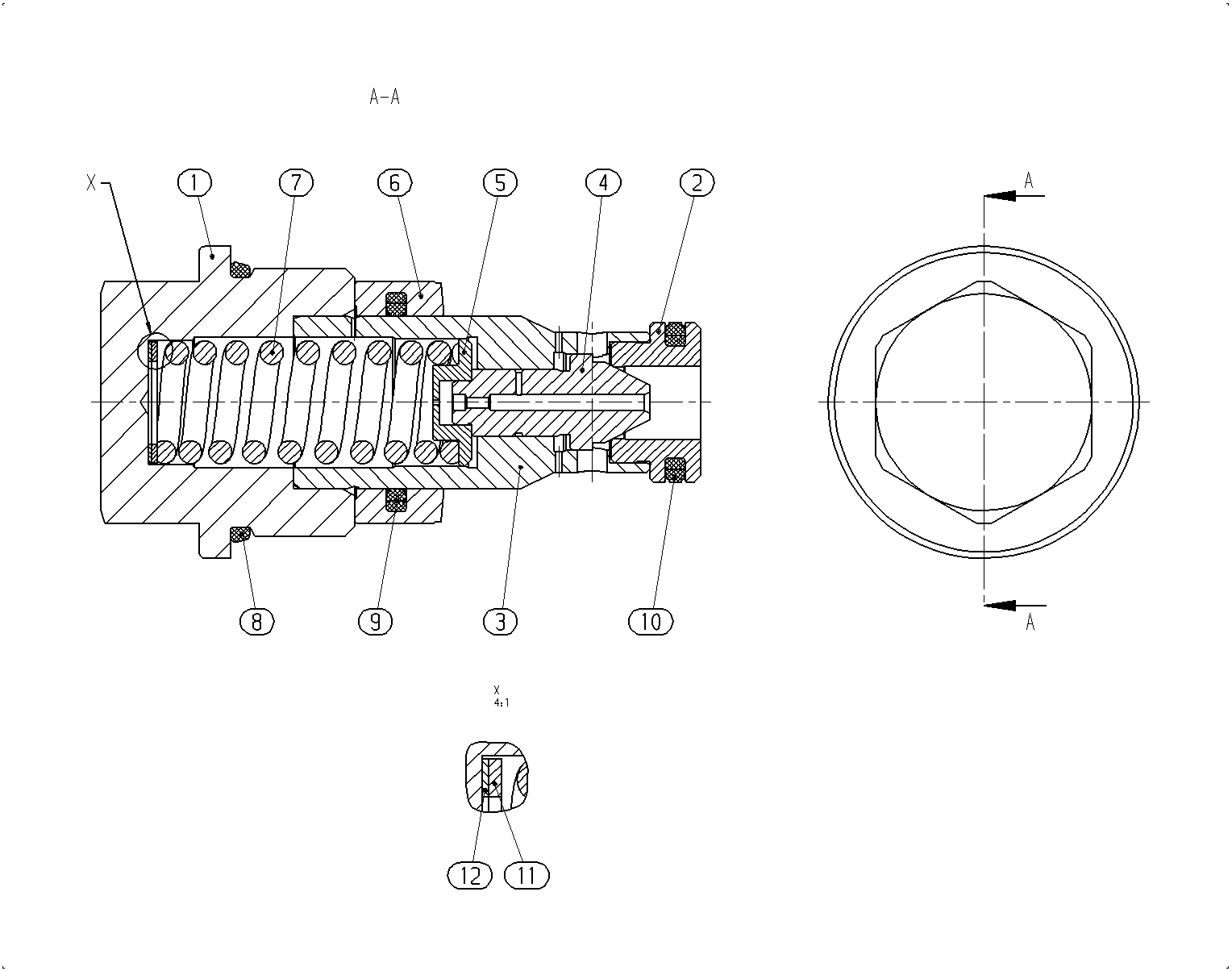

PRESSURE RELIEF VALVER902152702
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902152657 | SCREW PLUG | 1 | ||
| 2 | R902152700 | VALVE SEAT | 1 | |
| R902152696 | BUSHING | 1 | ||
| R902152697 | CONE | 1 | ||
| 5 | R902152699 | SPRING DISK | 1 | |
| R902152698 | RING | 1 | ||
| R902152701 | COMPRESSION SPRING | 1 | ||
| 8 | R909830872 | O-RINGD | 1 | |
| 9 | R901024797 | ROD SEALD | 1 | |
| R900011792 | PISTON SEALD | 1 | ||
| 11 | R900015062 | SHIM RING | 1 | |
| R900015061 | SHIM RING | 1 |
