Baugruppe
REGULATORR902153241

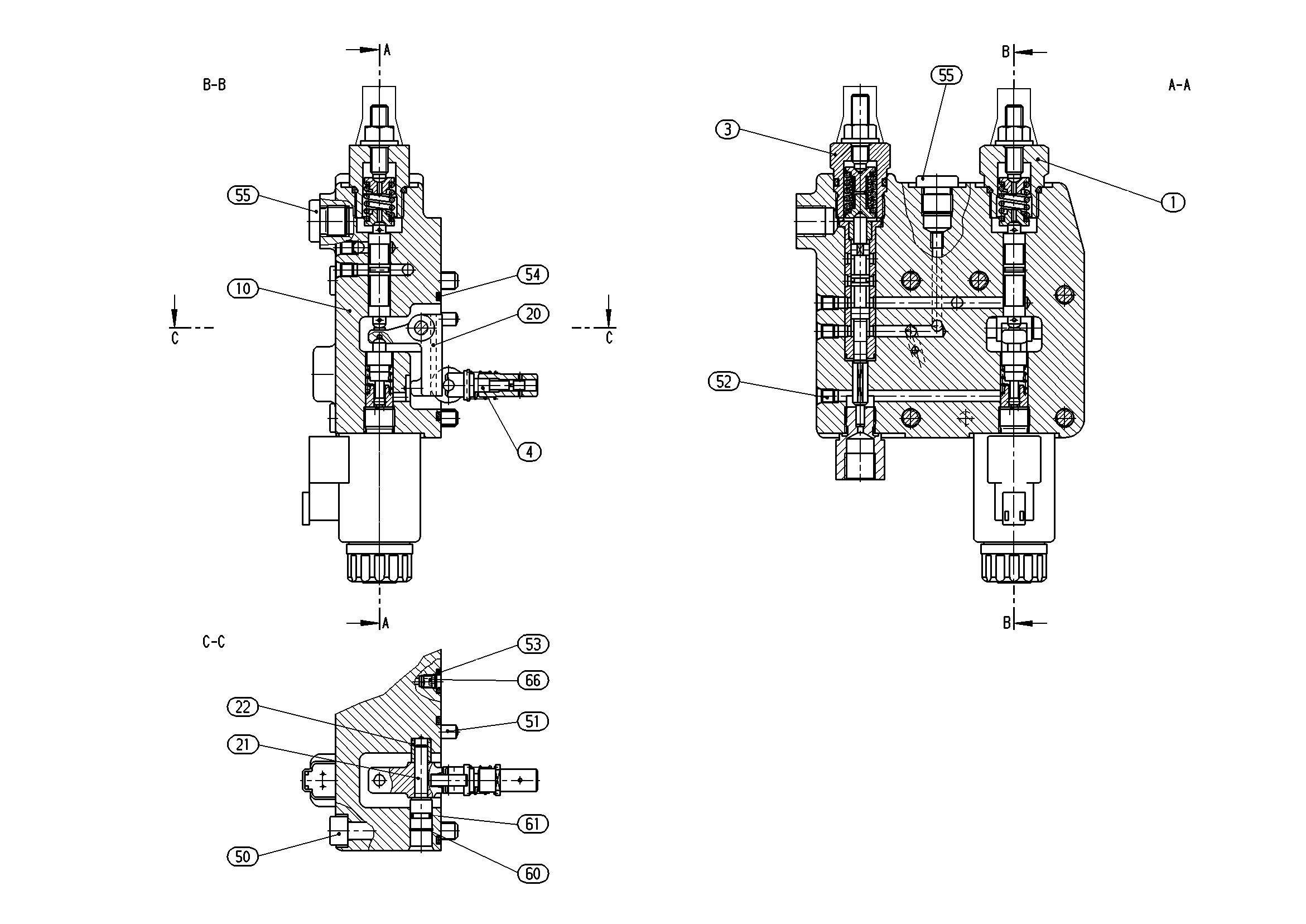

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902083684 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| R902127109 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R902123529 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| R902066755 | CONTROL HOUSING | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| 21 | R909431281 | BEARING BOLT | 1 | |
| R909431286 | BUSHING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 9 | ||
| R902602890 | R-RING | 3 | ||
| R902600656 | O-RING | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| 98 | R902002478 | SEAL KIT | 1 |
