Baugruppe

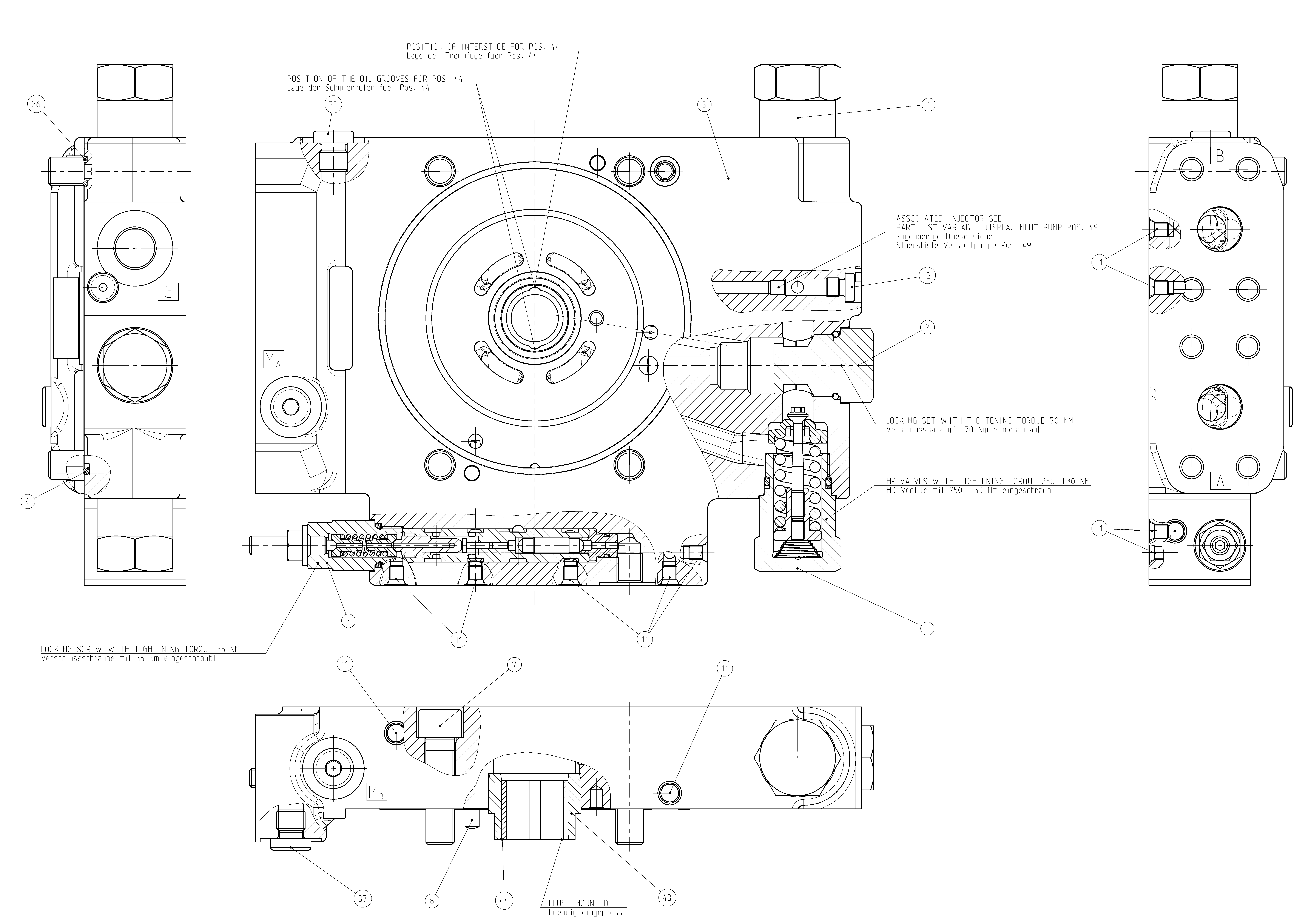

CONNECTION PLATER902167381
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902016398 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R902012820 | LOCKING SET | 1 | ||
| R909447281 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | ||
| R902167383 | CONNECTION PLATE | 1 | ||
| R909086611 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909830536 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909425694 | BUSHING | 1 | ||
| R902260547 | BUSHING | 1 | ||
| 98 | R902002397 | SEAL KIT | 1 |
