Baugruppe

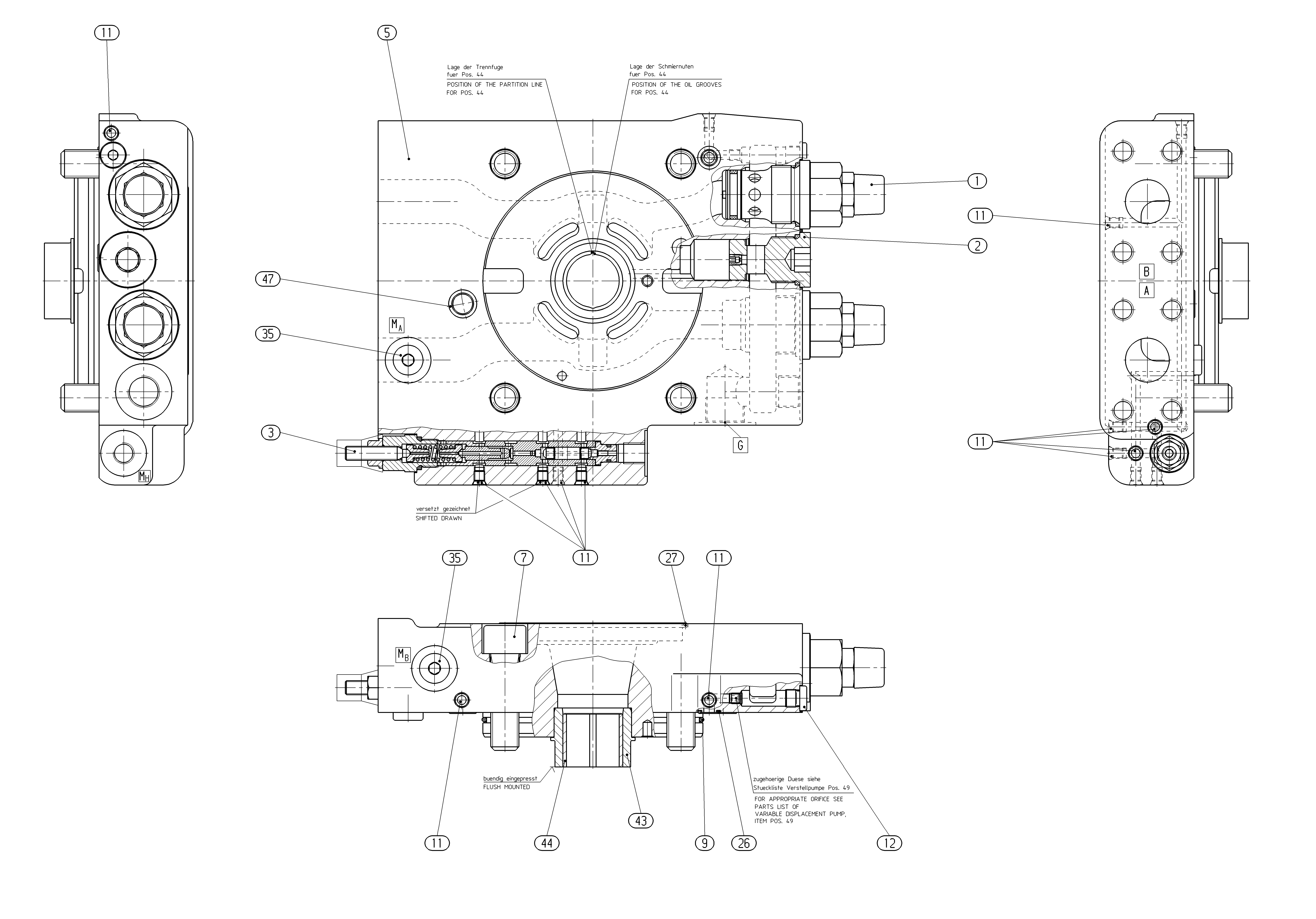

CONNECTION PLATER902169674
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902603814 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 | ||
| R909438910 | LOCKING SET | 1 | ||
| R909446763 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | ||
| R902269336 | CONNECTION PLATE | 1 | ||
| R902600278 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085947 | O-RINGD | 1 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R913044774 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909444842 | BUSHING | 1 | ||
| R902260551 | BUSHING | 1 | ||
| R913046291 | O-RINGD | 2 |
