Baugruppe

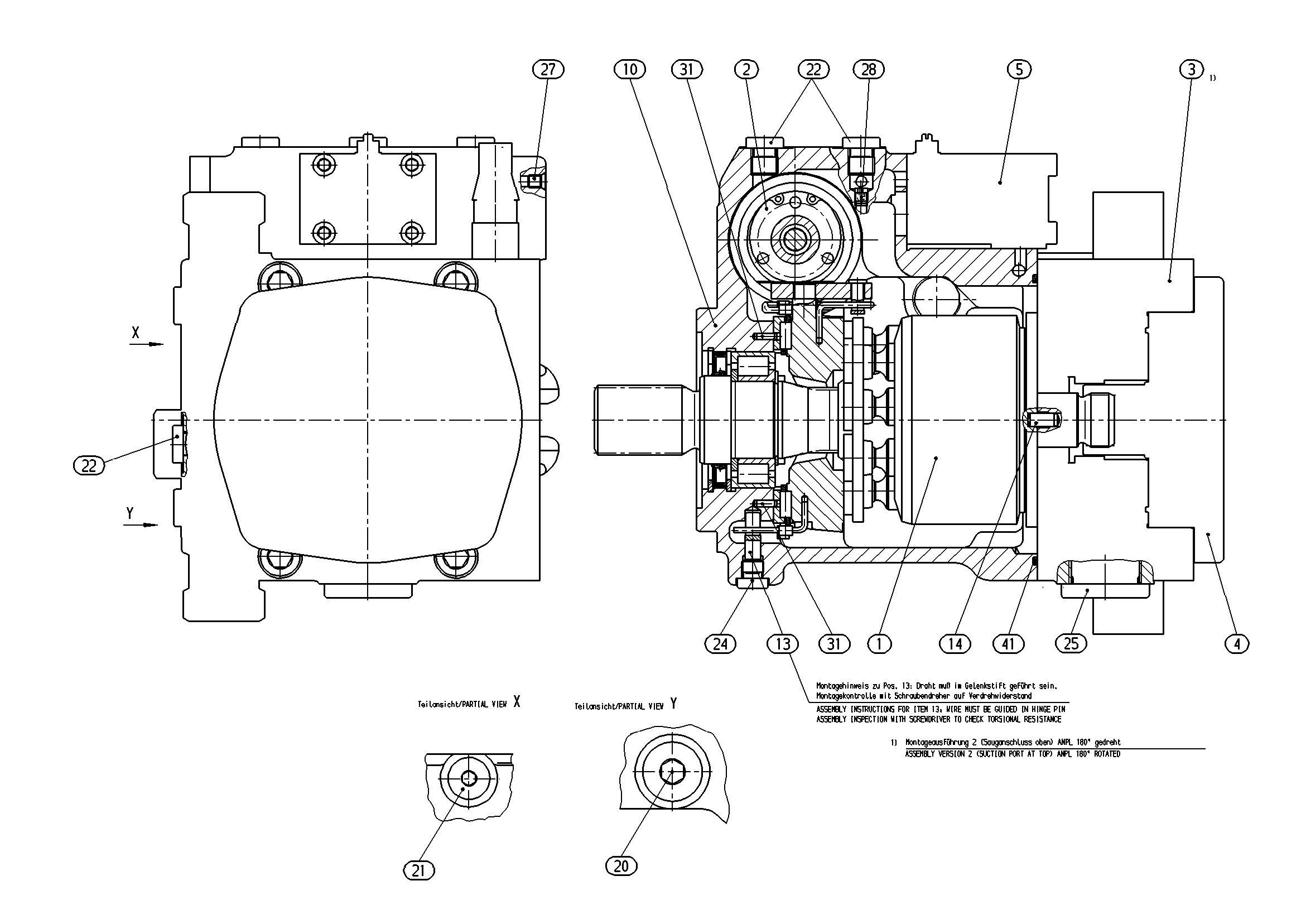

AXIAL-PISTON PUMPR902169835
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902100539 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902017572 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902105555 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902246741 | BELL HOUSING Stückliste der Baugruppe →L | 1 | ||
| 5 | R902016082 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | |
| R902015639 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| 31 | R913016373 | SLOTTED SPRING PIN | 2 | |
| R909085364 | O-RINGD | 1 | ||
| 98 | R902095618 | SEAL KIT | 1 |
