Baugruppe

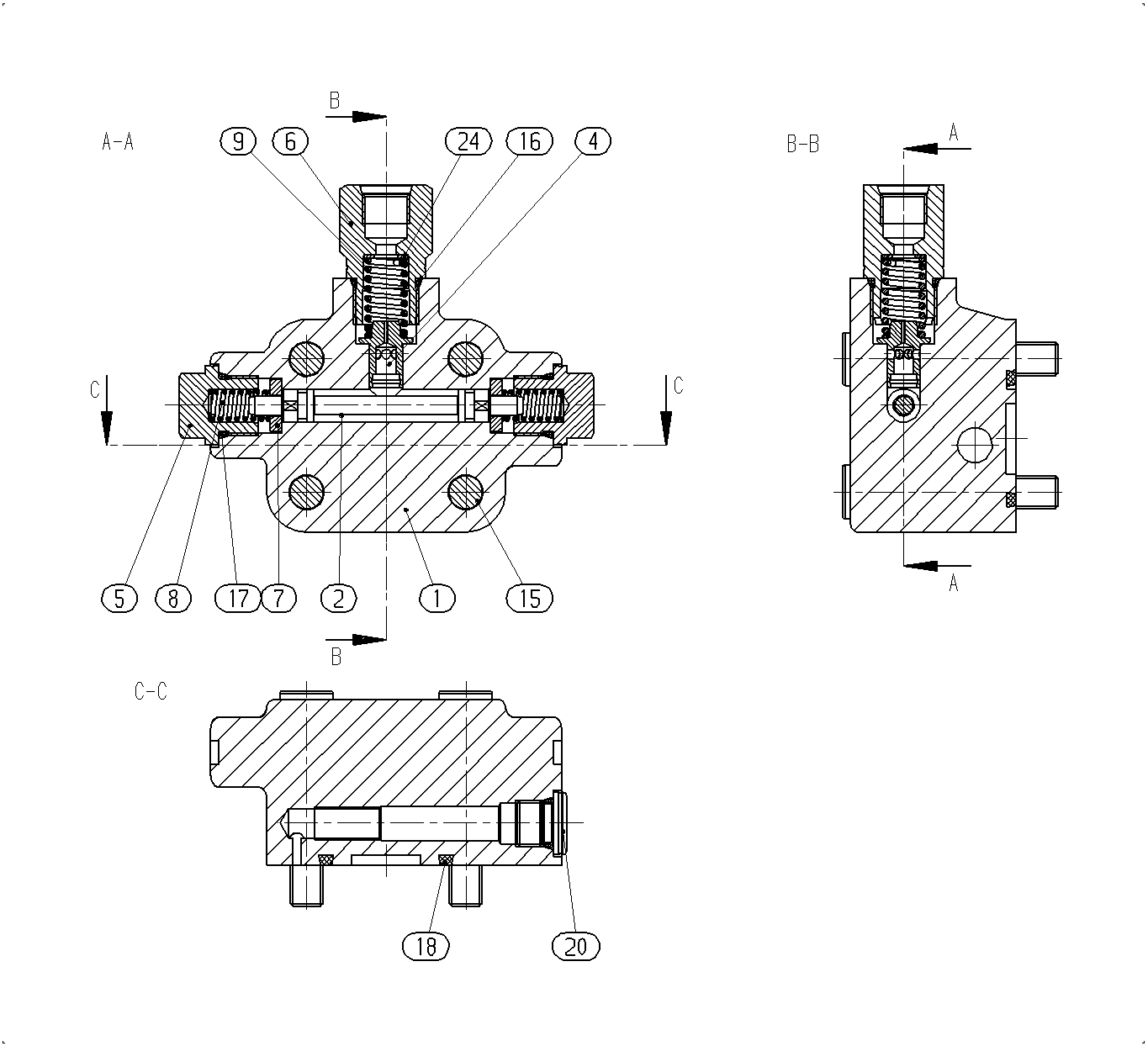

FLUSH/BOOST PRESSURE VALVER902182022
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902182012 | VALVE HOUSING | 1 | ||
| R902000156 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R902242728 | SCREW PLUG | 2 | ||
| R902182013 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909831470 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830862 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 2 | ||
| R909085578 | O-RINGD | 1 | ||
| R909831482 | SCREW PLUGD | 1 | ||
| R909157079 | SHIM RING | 1 |
