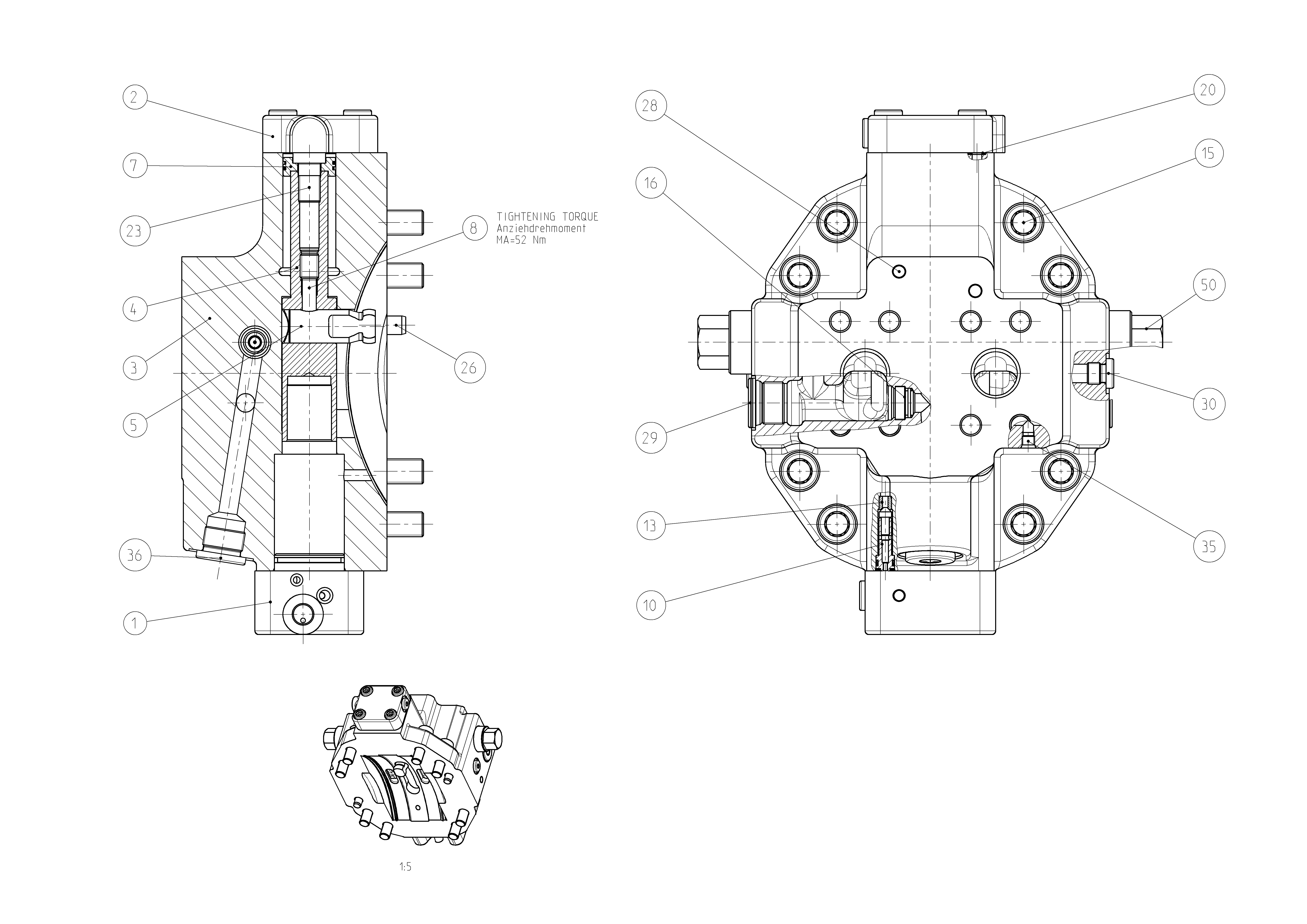

Baugruppe
CONTROLR902182149
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909604169 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909603769 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902182148 | COVER PLATE | 1 | ||
| R909921435 | POSITIONING PISTON | 1 | ||
| R909424057 | POSITIONING STUD | 1 | ||
| R902102907 | PISTON | 1 | ||
| R909445016 | SETSCREW | 1 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R902209845 | BUSHING | 2 | ||
| R909083133 | SOCKET HEAD CAP SCREW | 8 | ||
| R902600009 | CHECK VALVE | 2 | ||
| R909085577 | O-RINGD | 3 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902601712 | SCREW PLUGD | 2 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156989 | SCREW PLUGD | 1 | ||
| R902156676 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 |
