Baugruppe
COVER PLATER902189302

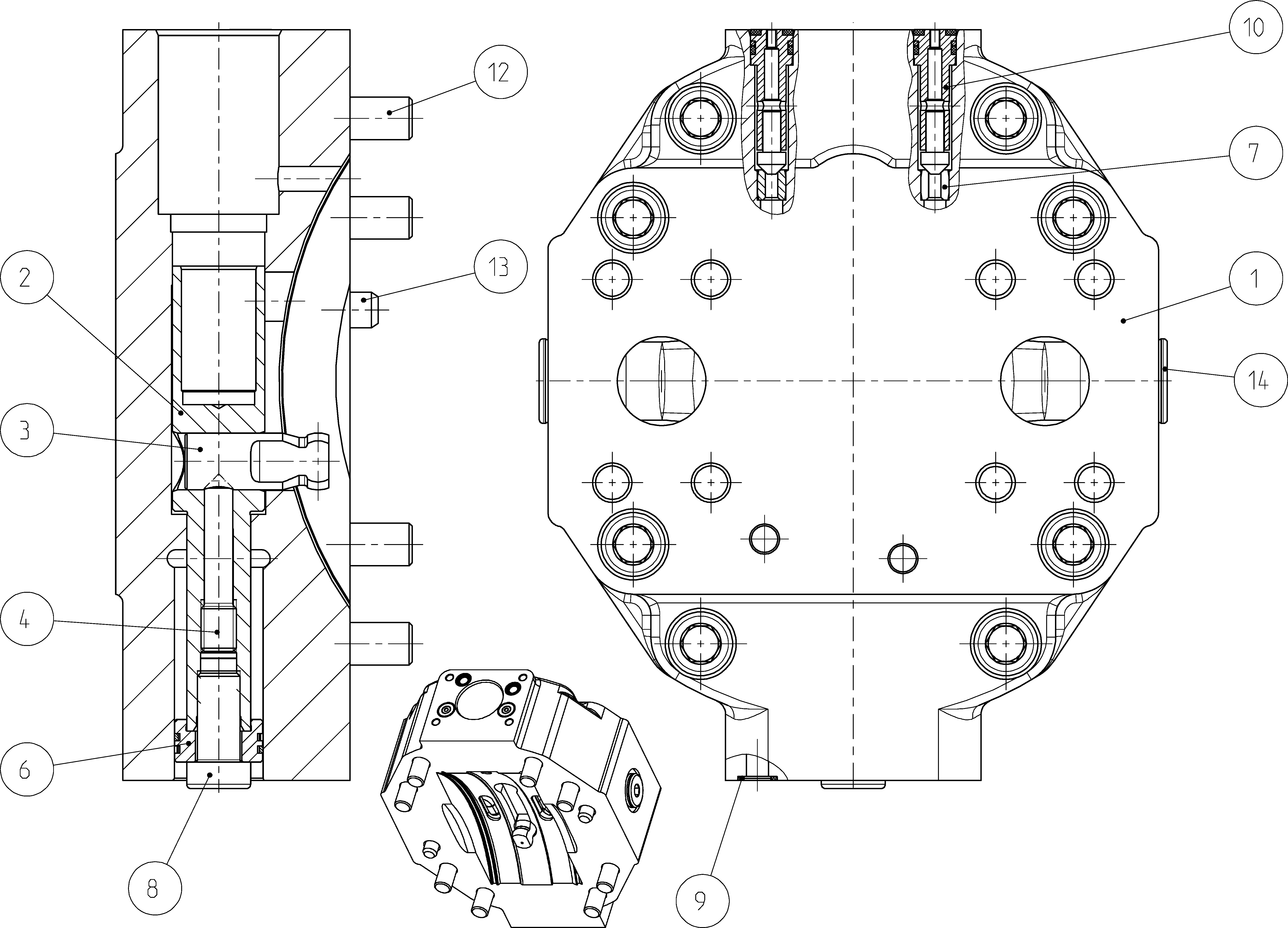

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902189303 | COVER PLATE Stückliste der Baugruppe →L | 1 | ||
| R909921439 | POSITIONING PISTON | 1 | ||
| R909422940 | POSITIONING STUD | 1 | ||
| R909445056 | SETSCREW | 1 | ||
| R902102899 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909083197 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R913068732 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R910901969 | SCREW PLUGD | 2 |
