Baugruppe

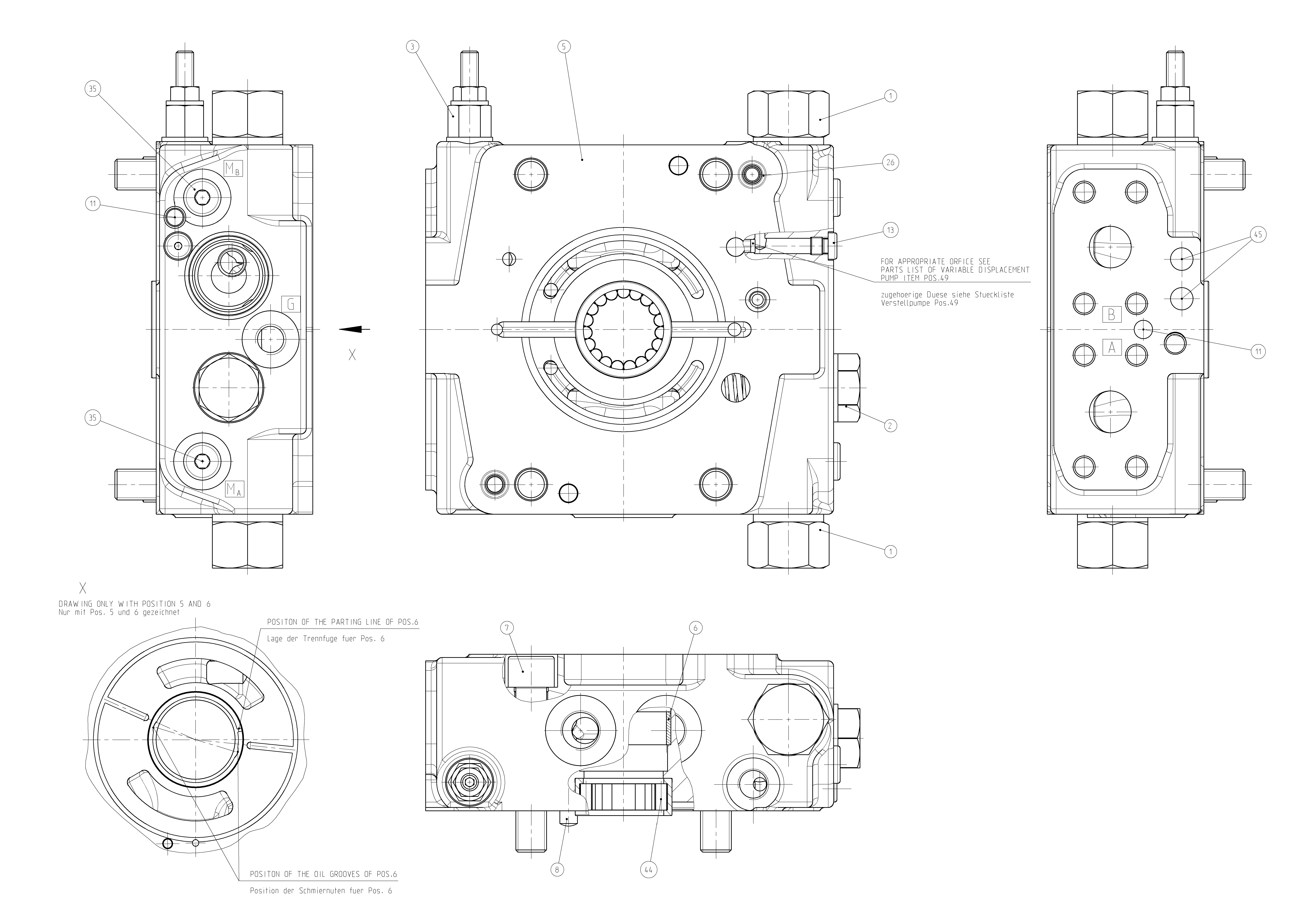

CONNECTION PLATER902189662
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902016386 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R902051329 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909437084 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | ||
| R902015575 | CONNECTION PLATE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R902600524 | SOCKET HEAD CAP SCREW | 4 | ||
| R913033778 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| 41 | R909415314 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909156249 | CYL. ROLLER BEARING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 98 | R902002446 | SEAL KIT | 1 |
