Baugruppe

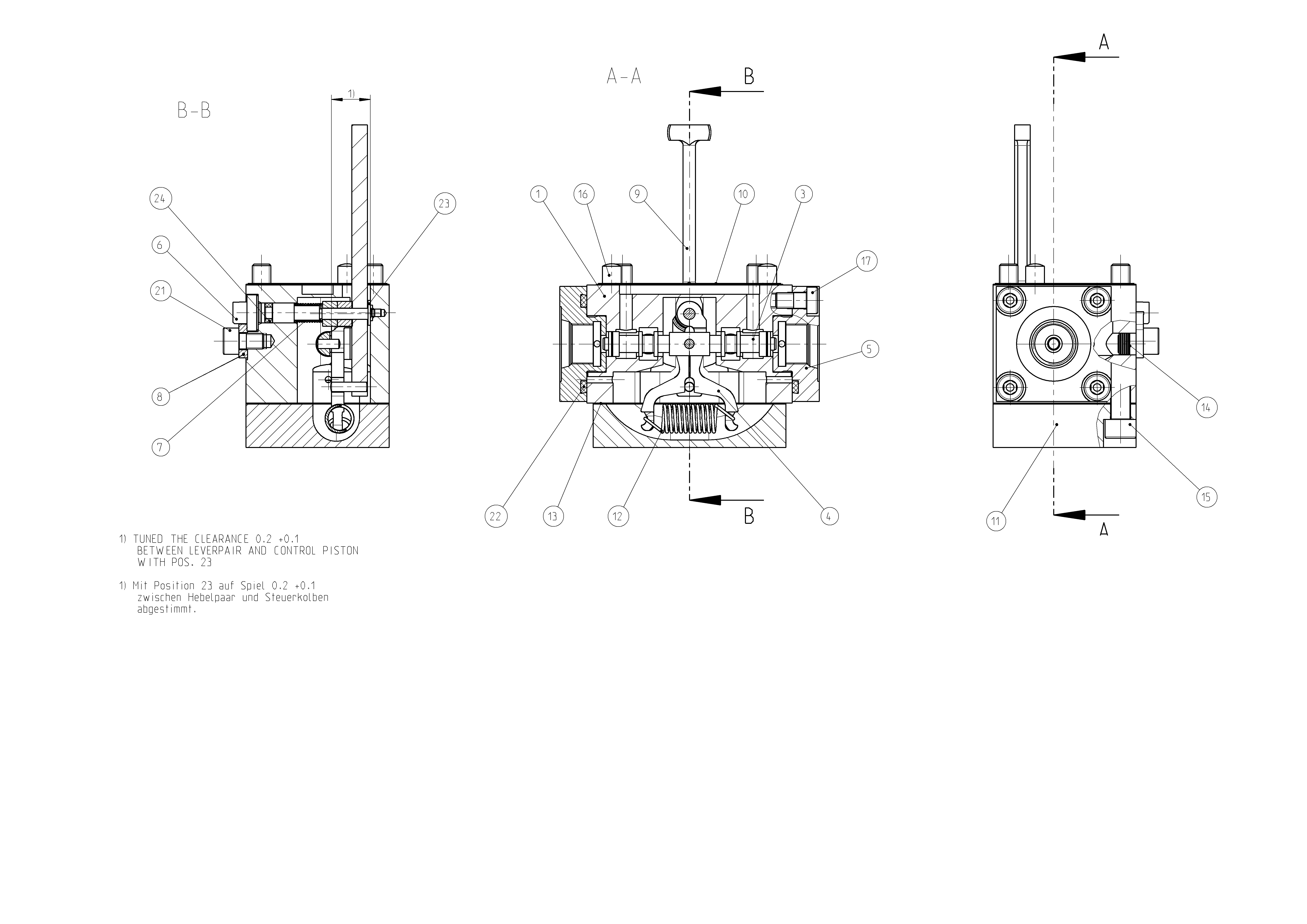

CONTROL MODULER902190621
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902115259 | HOUSING | 1 | ||
| R902115260 | CONTROL PISTON | 1 | ||
| R902168368 | LEVER PAIR | 1 | ||
| 5 | R902190591 | LOCATION PIECE | 2 | |
| R902272777 | ECCENTRIC PIN | 1 | ||
| R902068165 | COMPRESSION SPRING | 1 | ||
| R902044854 | WASHER | 1 | ||
| 9 | R902113682 | FEEDBACK LEVER | 1 | |
| 10 | R902603825 | SEALD | 1 | |
| 11 | R902097197 | COVER | 1 | |
| R902089589 | EXTENSION SPRING | 1 | ||
| R902097155 | SEALD | 1 | ||
| 14 | R902603686 | SEALING PLUG | 2 | |
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| 17 | R909083183 | SOCKET HEAD CAP SCREW | 8 | |
| 21 | R902601243 | SOCKET HEAD CAP SCREW | 1 | |
| R909083764 | O-RING | 2 | ||
| 23 | R902051252 | WASHER | 1 | |
| 23 | R902051253 | WASHER | 1 | |
| 23 | R902051254 | WASHER | 1 | |
| 23 | R902051255 | WASHER | 1 | |
| 23 | R902051256 | WASHER | 1 | |
| 23 | R902064222 | WASHER | 1 | |
| 24 | R909086301 | O-RING | 1 | |
| 26 | R902105435 | WASHER | 1 | |
| 26 | R902105436 | WASHER | 1 | |
| 26 | R902105437 | WASHER | 1 | |
| 26 | R902105438 | WASHER | 1 | |
| 26 | R902105439 | WASHER | 1 | |
| 26 | R902105440 | WASHER | 1 |
