Baugruppe

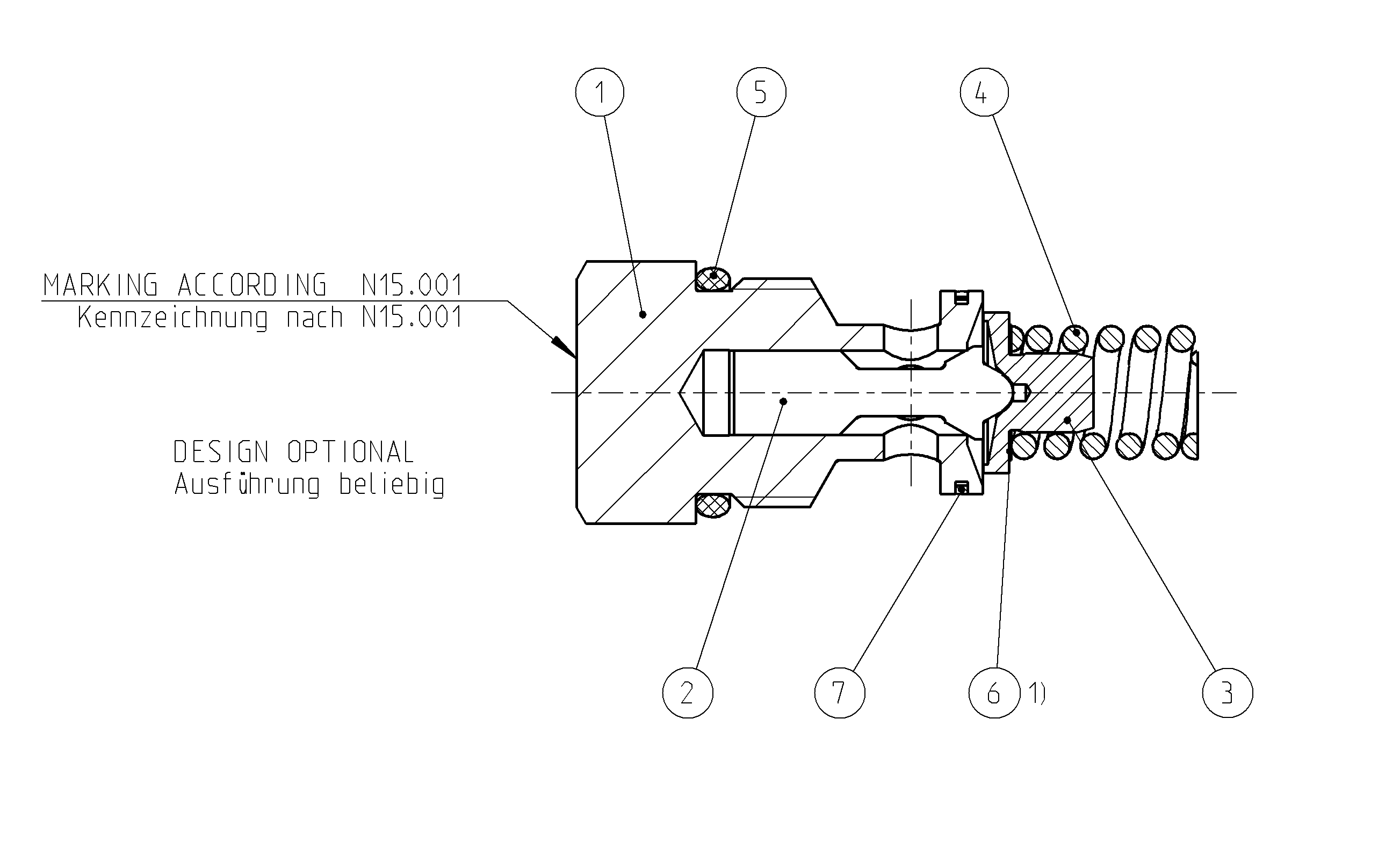

PRESSURE RELIEF VALVER902192636
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902105492 | SCREW PLUG | 1 | ||
| R909435899 | VALVE SPOOL | 1 | ||
| R902007951 | SPRING DISK | 1 | ||
| R909444148 | COMPRESSION SPRING | 1 | ||
| R909830867 | O-RINGD | 1 | ||
| R909150369 | SHIM RING | 1 | ||
| R909150370 | SHIM RING | 1 | ||
| R909153402 | SHIM RING | 1 | ||
| R902601678 | STEEL SEALING RING | 1 |
