Baugruppe

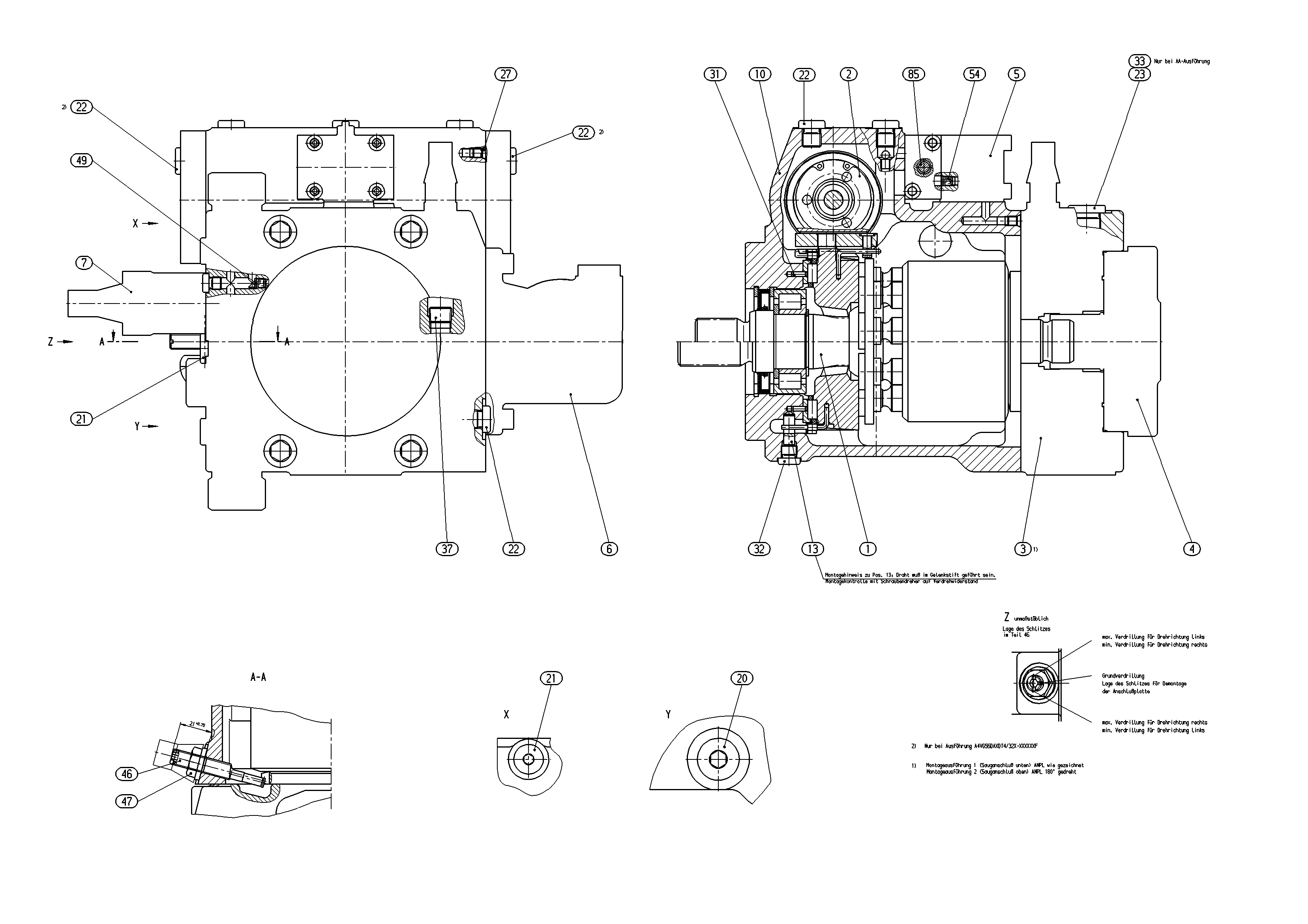

AXIAL-PISTON PUMPR902193673
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909609457 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902017032 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909609347 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| 4 | R902029521 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | |
| 5 | R902120780 | INCHING VALVE Stückliste der Baugruppe →L | 1 | |
| R902033737 | FILTER Stückliste der Baugruppe →L | 1 | ||
| 7 | R902182526 | CONTROL CARTRIDGE Stückliste der Baugruppe →L | 1 | |
| R902029526 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R909438806 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| 98 | R902095644 | SEAL KIT | 1 |
