Baugruppe

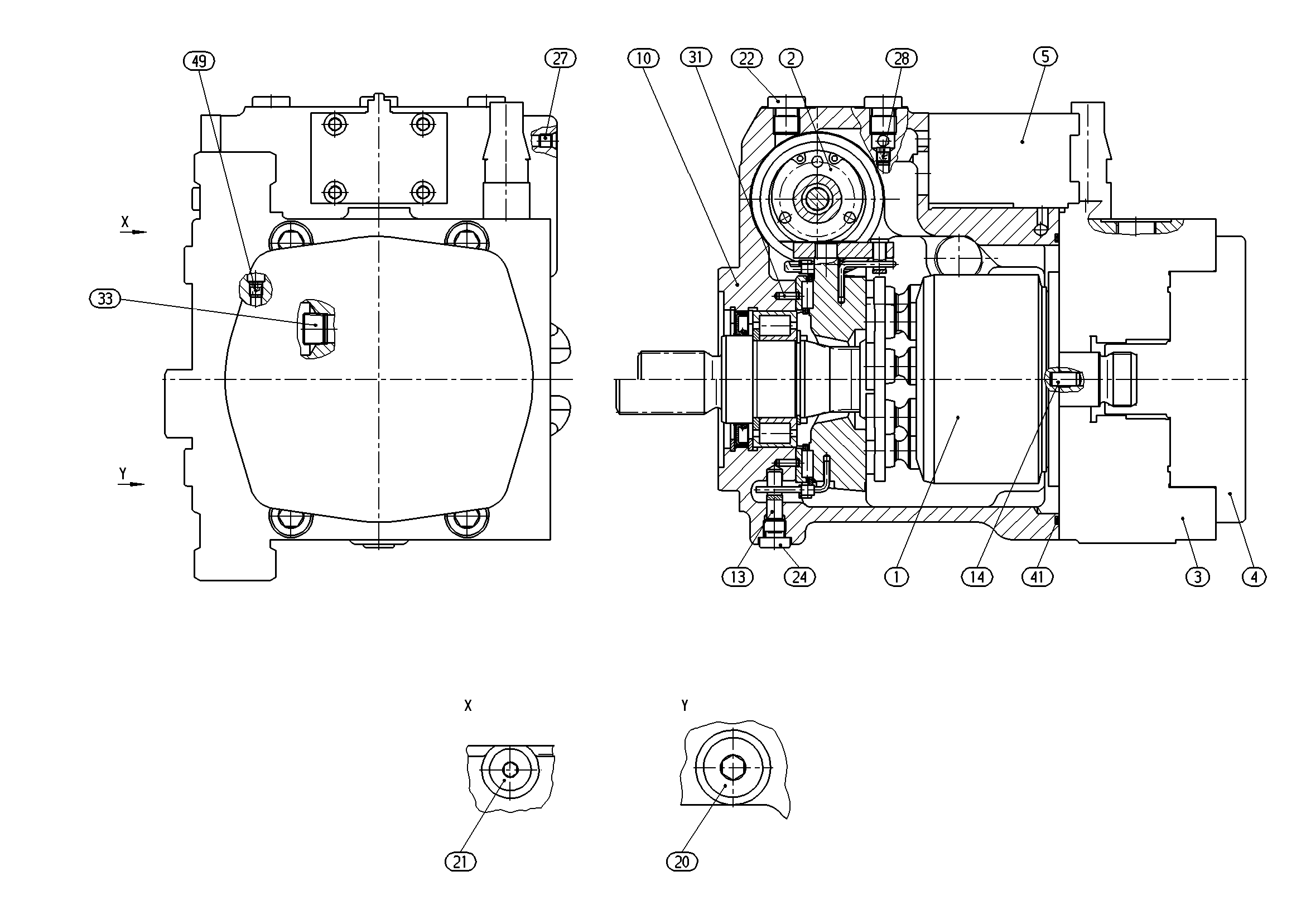

AXIAL-PISTON PUMPR902205516
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902100538 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902084681 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902010002 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902026911 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902083461 | DIRECTIONAL-CONTROL VALVE Stückliste der Baugruppe →L | 1 | ||
| R902015662 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909085364 | O-RINGD | 1 | ||
| 98 | R902095615 | SEAL KIT | 1 |
