Baugruppe

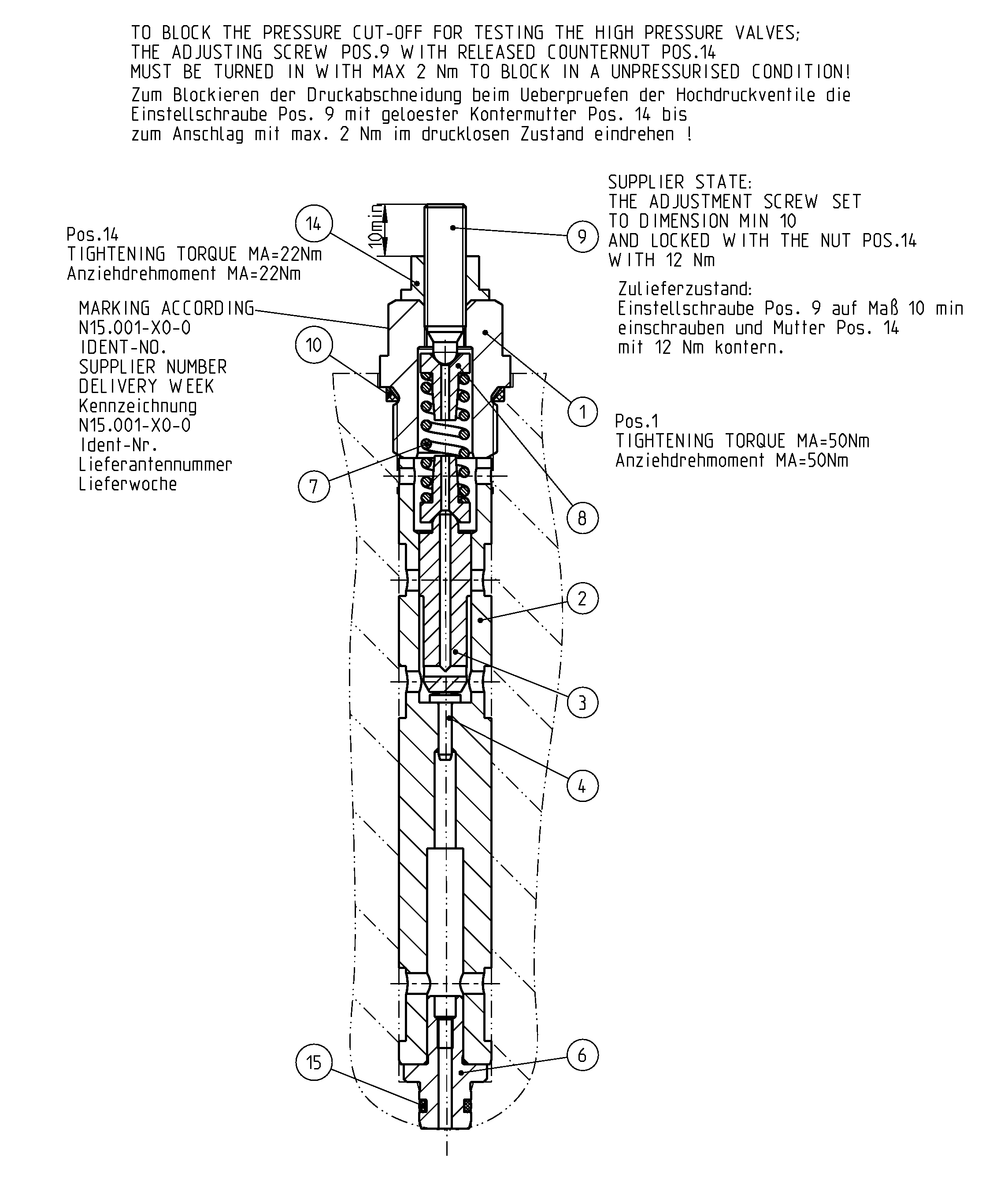

PRESSURE CUT-OFF VALVER902206246
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909432376 | SCREW PLUG | 1 | ||
| R902206245 | VALVE BUSHING | 1 | ||
| R909432301 | CONTROL PISTON | 1 | ||
| R909432163 | PISTON | 1 | ||
| R909432775 | VALVE SEAT | 1 | ||
| R902168277 | COMPRESSION SPRING | 1 | ||
| R902049851 | SPRING DISK | 2 | ||
| R909432167 | ADJUSTING SCREW | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909086380 | O-RINGD | 1 |
