Baugruppe

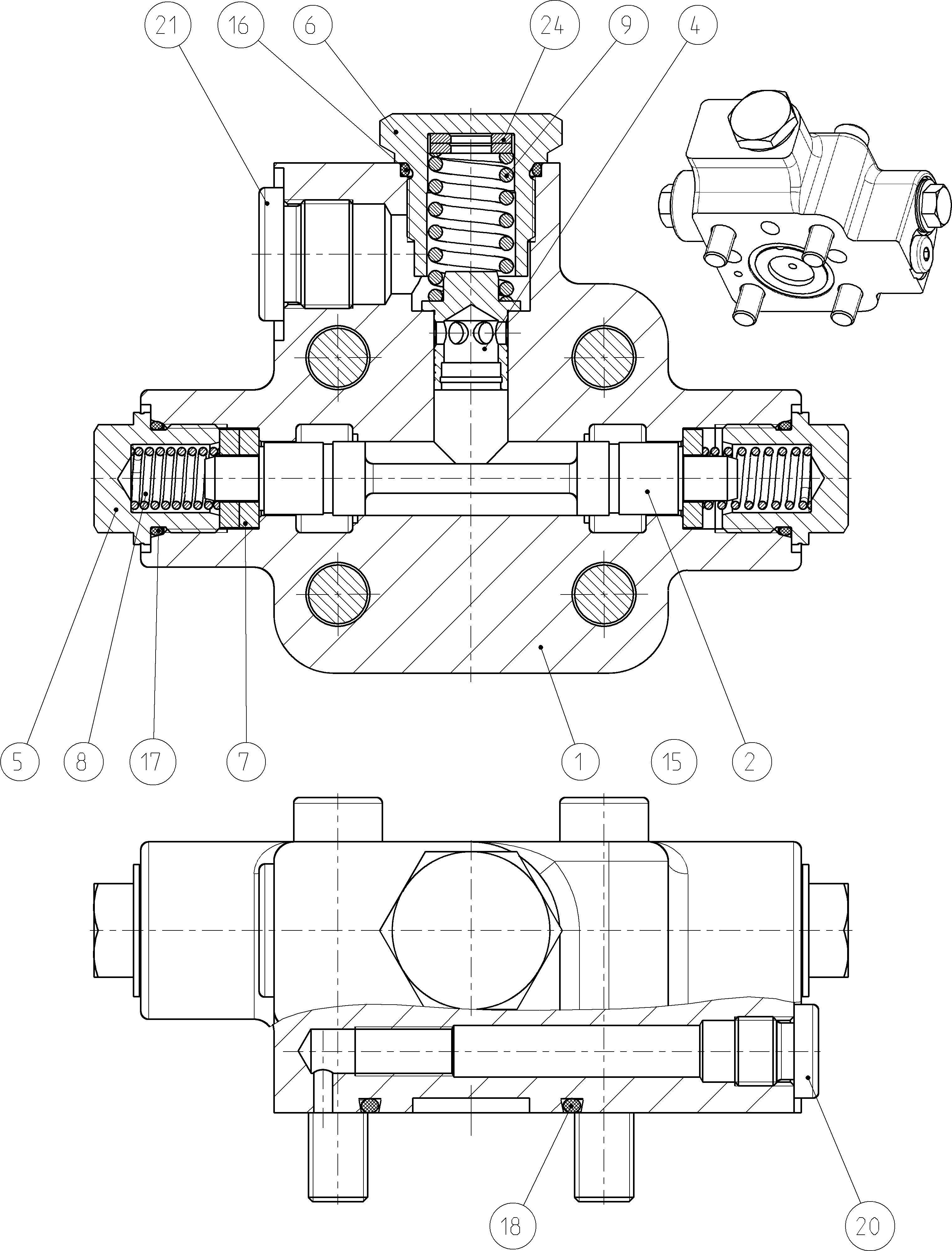

FLUSH/BOOST PRESSURE VALVER902209811
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902182134 | VALVE HOUSING | 1 | ||
| R902119990 | FLUSHING PISTON | 1 | ||
| R902134982 | VALVE SPOOL | 1 | ||
| R902163788 | SCREW PLUG | 2 | ||
| R909435052 | SCREW PLUG | 1 | ||
| R902182251 | WASHER | 3 | ||
| R902200059 | COMPRESSION SPRING | 2 | ||
| R909078142 | COMPRESSION SPRING | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152694 | O-RINGD | 1 | ||
| R902600738 | O-RINGD | 2 | ||
| R909154053 | O-RINGD | 1 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909156654 | SCREW PLUGD | 1 | ||
| R909445735 | WASHER | 2 |
