Baugruppe

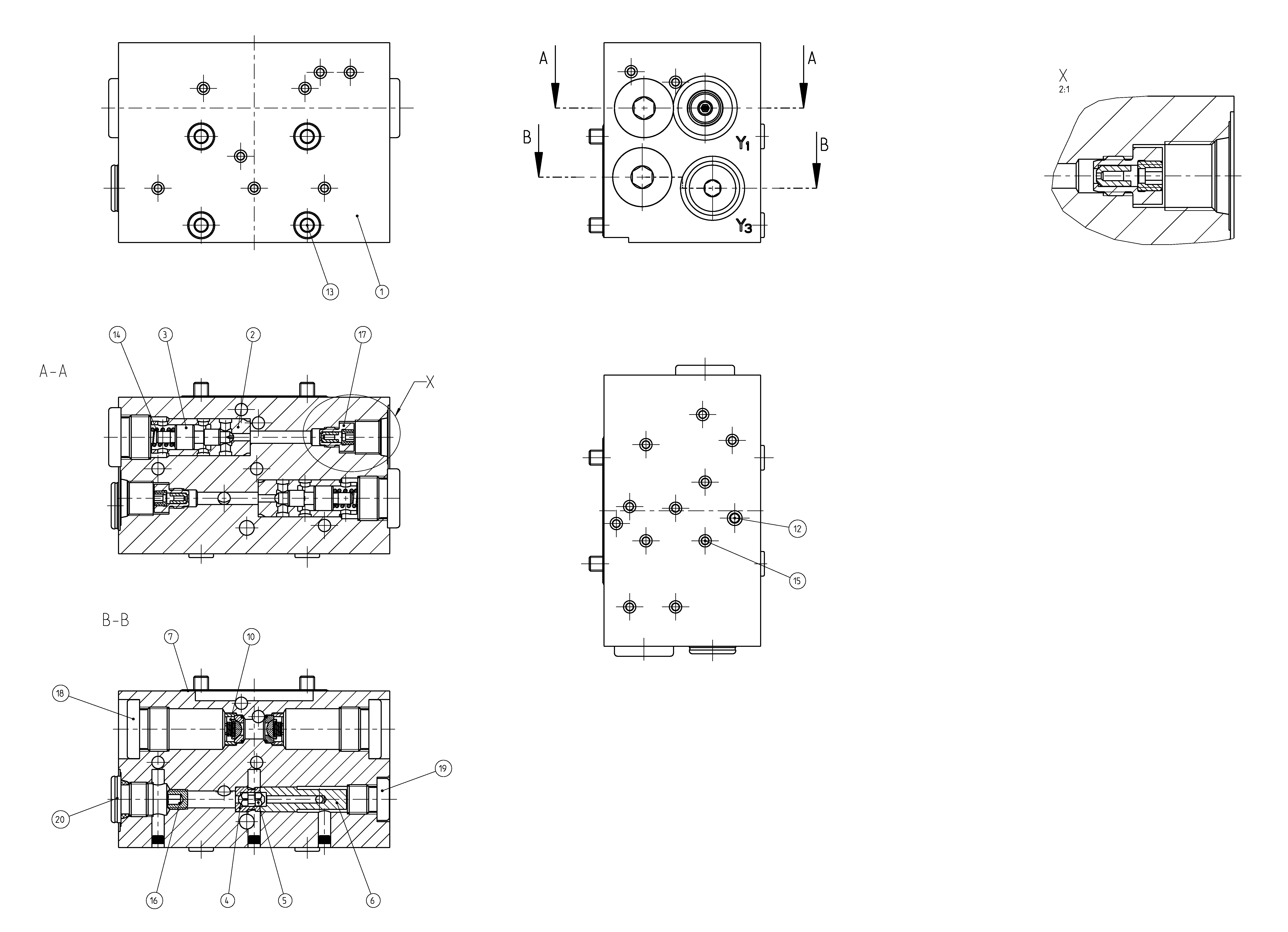

CONTROL MODULER902215672
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902215669 | HOUSING | 1 | ||
| R902005872 | VALVE BUSHING | 2 | ||
| R902007396 | THROTTLE PISTON | 2 | ||
| R902005870 | THROTTLE PISTON | 1 | ||
| R902005871 | THROTTLE PISTON | 1 | ||
| R909443061 | VALVE HOUSING | 1 | ||
| R909443060 | VALVE PIN | 1 | ||
| R902005869 | VALVE HOUSING | 1 | ||
| R902603825 | SEALD | 1 | ||
| R909831957 | CHECK VALVE | 2 | ||
| R902603685 | SEALING PLUG | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902228591 | COMPRESSION SPRING | 2 | ||
| R902603684 | SEALING PLUG | 22 | ||
| R909083493 | SETSCREW | 1 | ||
| R902007176 | THROTTLE VALVE Stückliste der Baugruppe →L | 2 | ||
| R909153815 | SCREW PLUG | 4 | ||
| R909151692 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 |
