Baugruppe

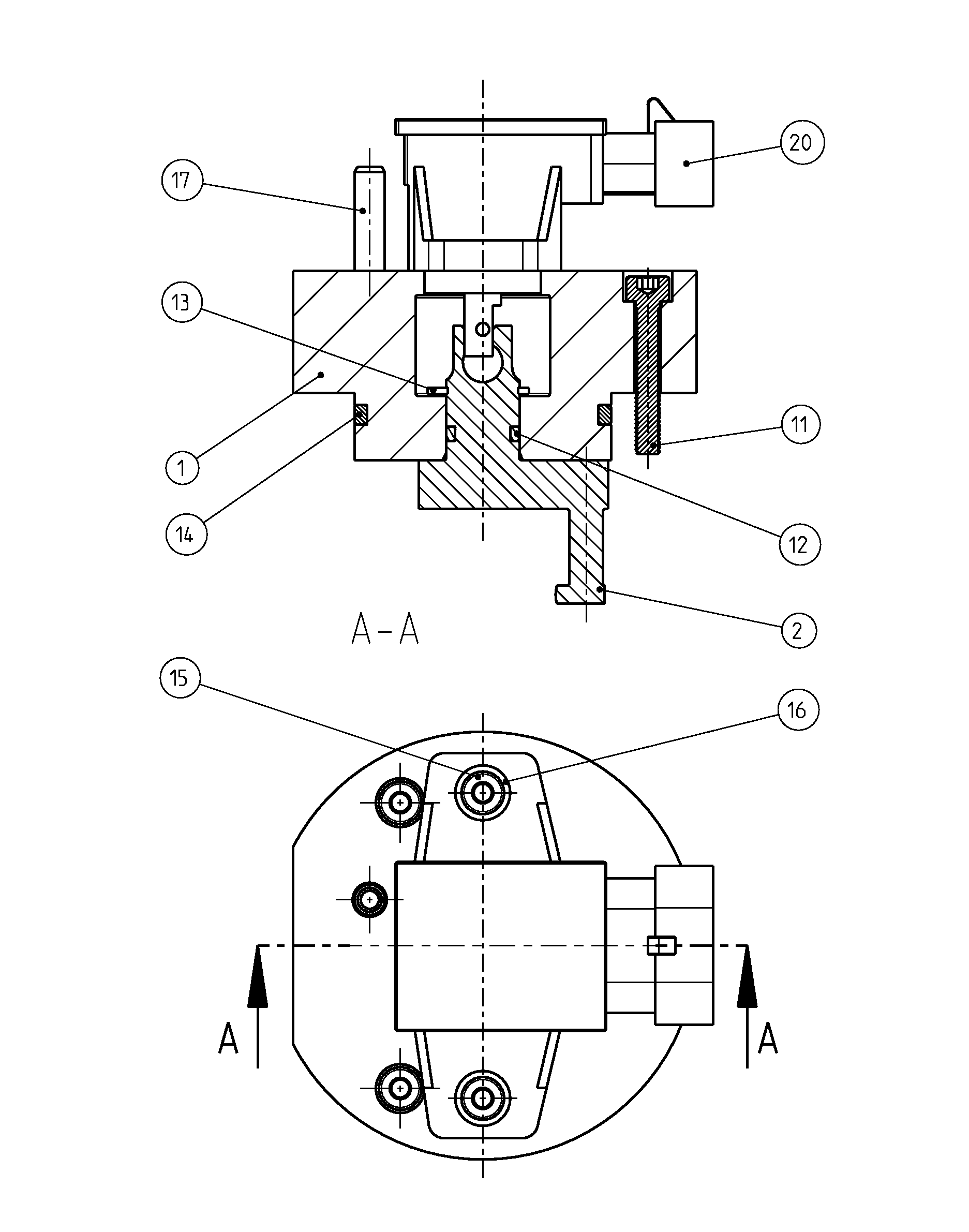

SWIVEL ANGLE SENSORR902215688
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902215687 | SENSOR HOUSING | 1 | ||
| R902215686 | SENSOR SHAFT | 1 | ||
| R902215573 | SOCKET HEAD CAP SCREW | 3 | ||
| R909086487 | O-RING | 1 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909832103 | O-RING | 1 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083272 | WASHER | 2 | ||
| R909153242 | SLOTTED SPRING PIN | 1 | ||
| R902601927 | ROT. ANGLE SENSOR | 1 |
