Baugruppe

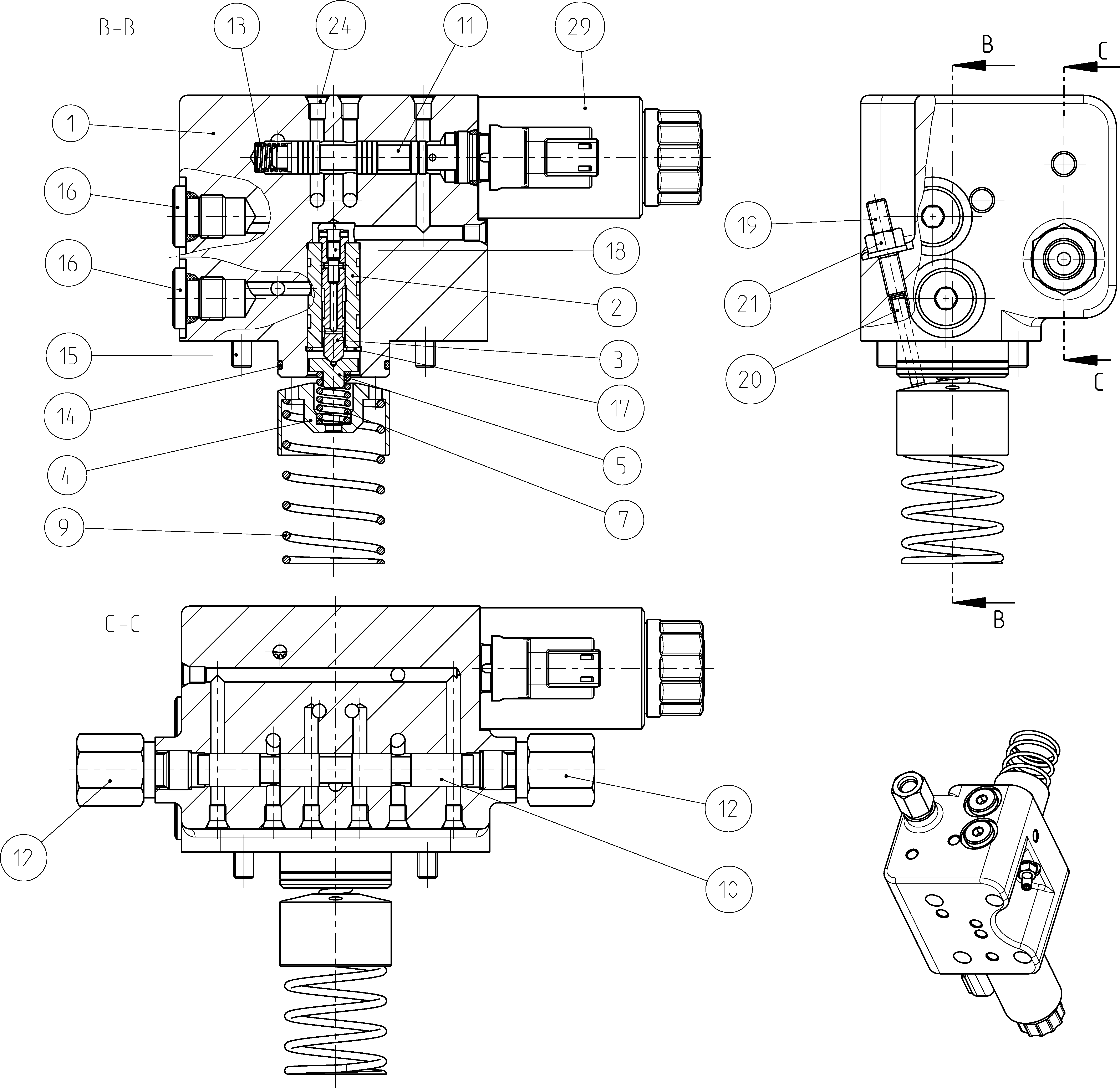

CONTROL PARTR902216198
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902254897 | CONTROL HOUSING | 1 | ||
| R909424258 | CONTROL SLEEVE | 1 | ||
| R909921245 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909651116 | COMPRESSION SPRING | 1 | ||
| R909435792 | SLIDE | 1 | ||
| R902084307 | CONTROL PISTON | 1 | ||
| R902049134 | THREADED REDUCING STUD Stückliste der Baugruppe →L | 2 | ||
| R902045064 | COMPRESSION SPRING | 1 | ||
| R909157562 | O-RINGD | 1 | ||
| R909156631 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601850 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087166 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 12 | ||
| R902602690 | SWITCHING SOLENOID | 1 |
