Baugruppe

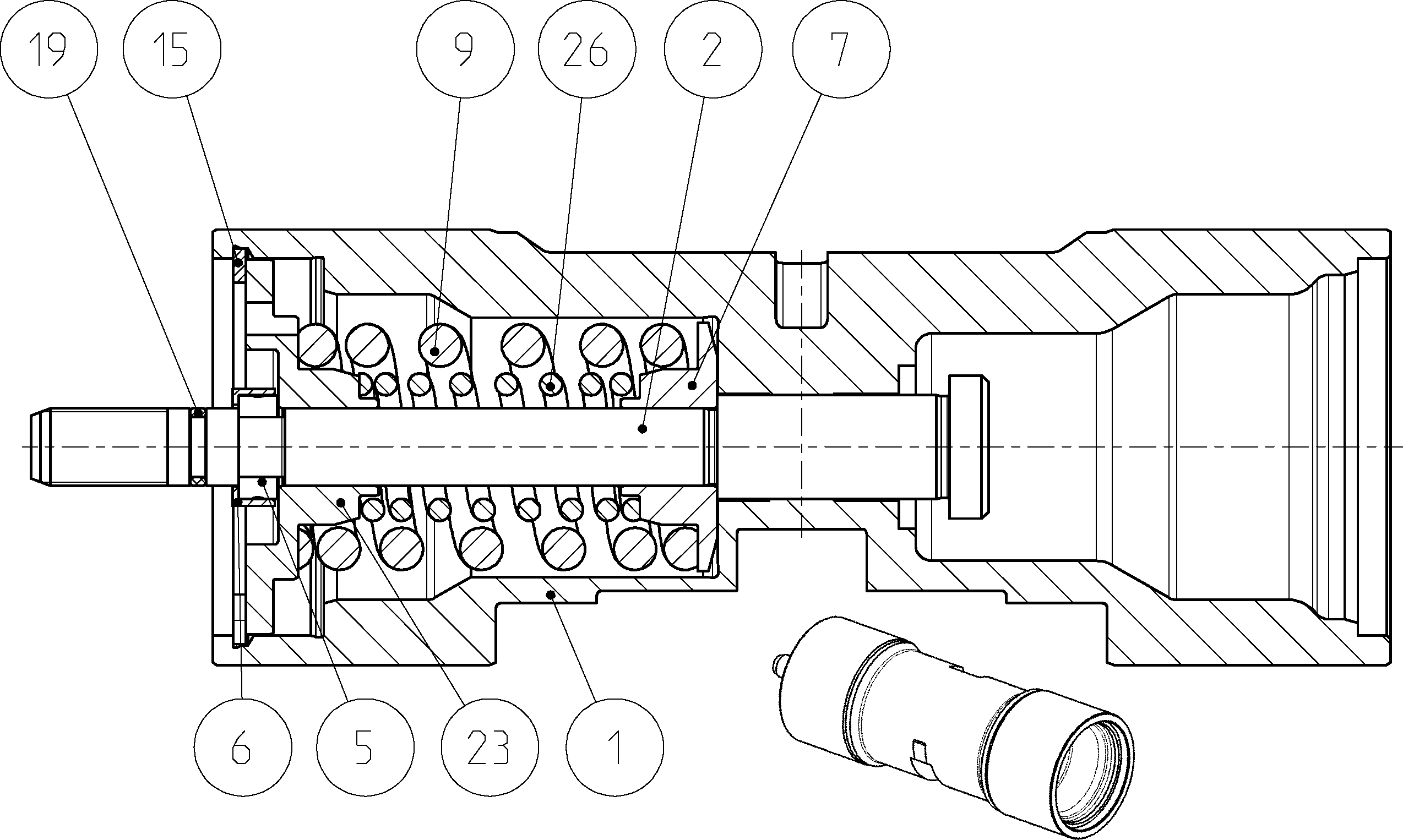

POSITIONING PISTONR902219791
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902130063 | ROD | 1 | ||
| R902015508 | RING | 1 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| R902600489 | LOCATING RING | 1 | ||
| R902124695 | SPRING DISK | 1 | ||
| R902105595 | COMPRESSION SPRING | 1 | ||
| R909084557 | RETAINING RING | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R902124694 | SPRING DISK | 1 | ||
| R902105593 | COMPRESSION SPRING | 1 |
