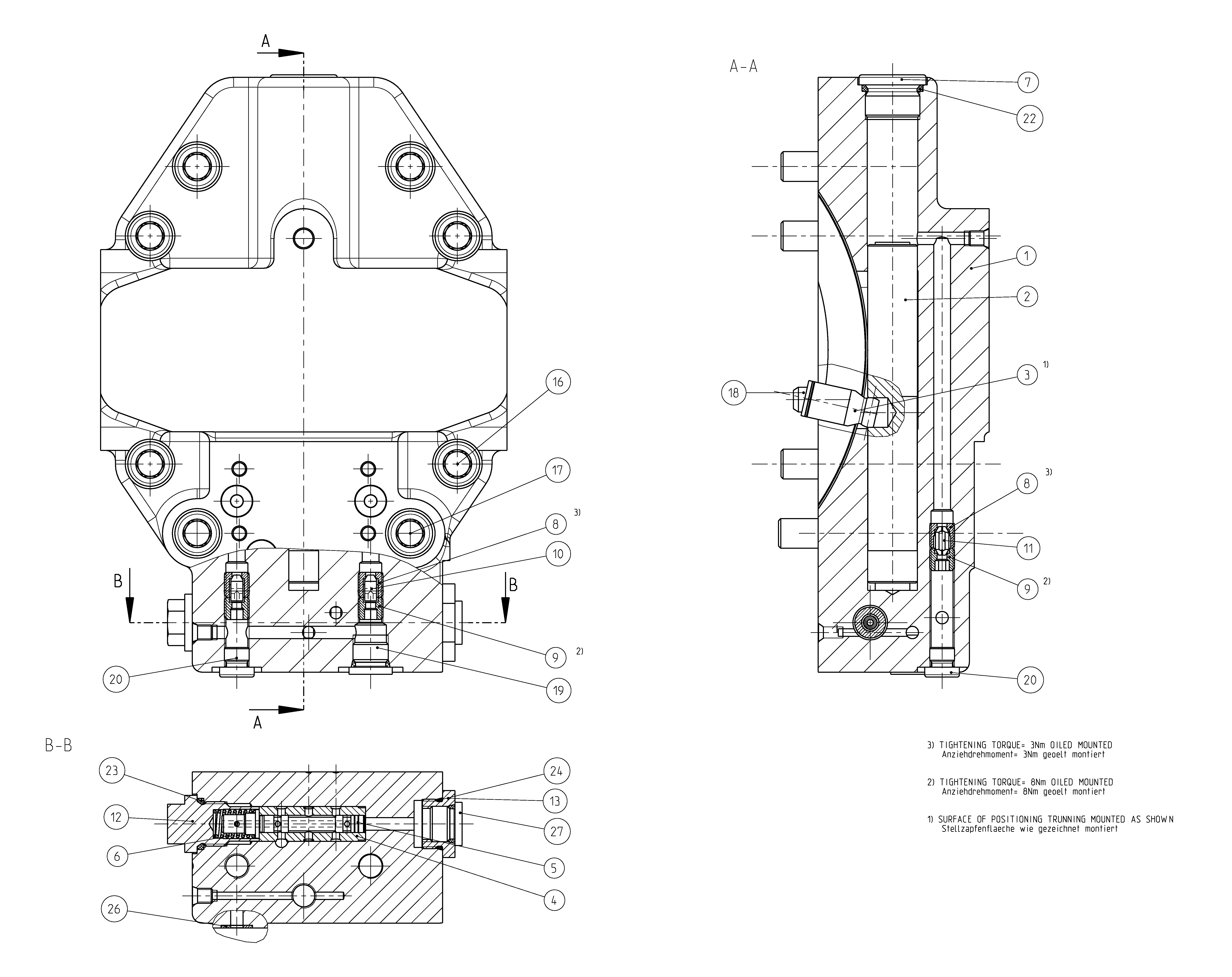

Baugruppe
COVER PLATER902221645
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902276255 | COVER PLATE Stückliste der Baugruppe →L | 1 | ||
| R909922090 | POSITIONING PISTON | 1 | ||
| R909650144 | POSITIONING STUD | 1 | ||
| R909921975 | CONTROL SLEEVE | 1 | ||
| R909921999 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443855 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 3 | ||
| 9 | R909400264 | THROTTLE SCREW | 3 | |
| R909439287 | VALVE PIN | 2 | ||
| 11 | R909400262 | THROTTLE PIN | 1 | |
| R902126546 | SCREW PLUG | 1 | ||
| R909153089 | SOCKET HEAD CAP SCREW | 6 | ||
| 17 | R913068732 | SOCKET HEAD CAP SCREW | 2 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| R913044793 | SCREW PLUGD | 1 | ||
| R902602216 | SCREW PLUGD | 2 | ||
| R909154235 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 1 | ||
| R909086487 | O-RINGD | 3 | ||
| R913044793 | SCREW PLUGD | 1 |
