Baugruppe

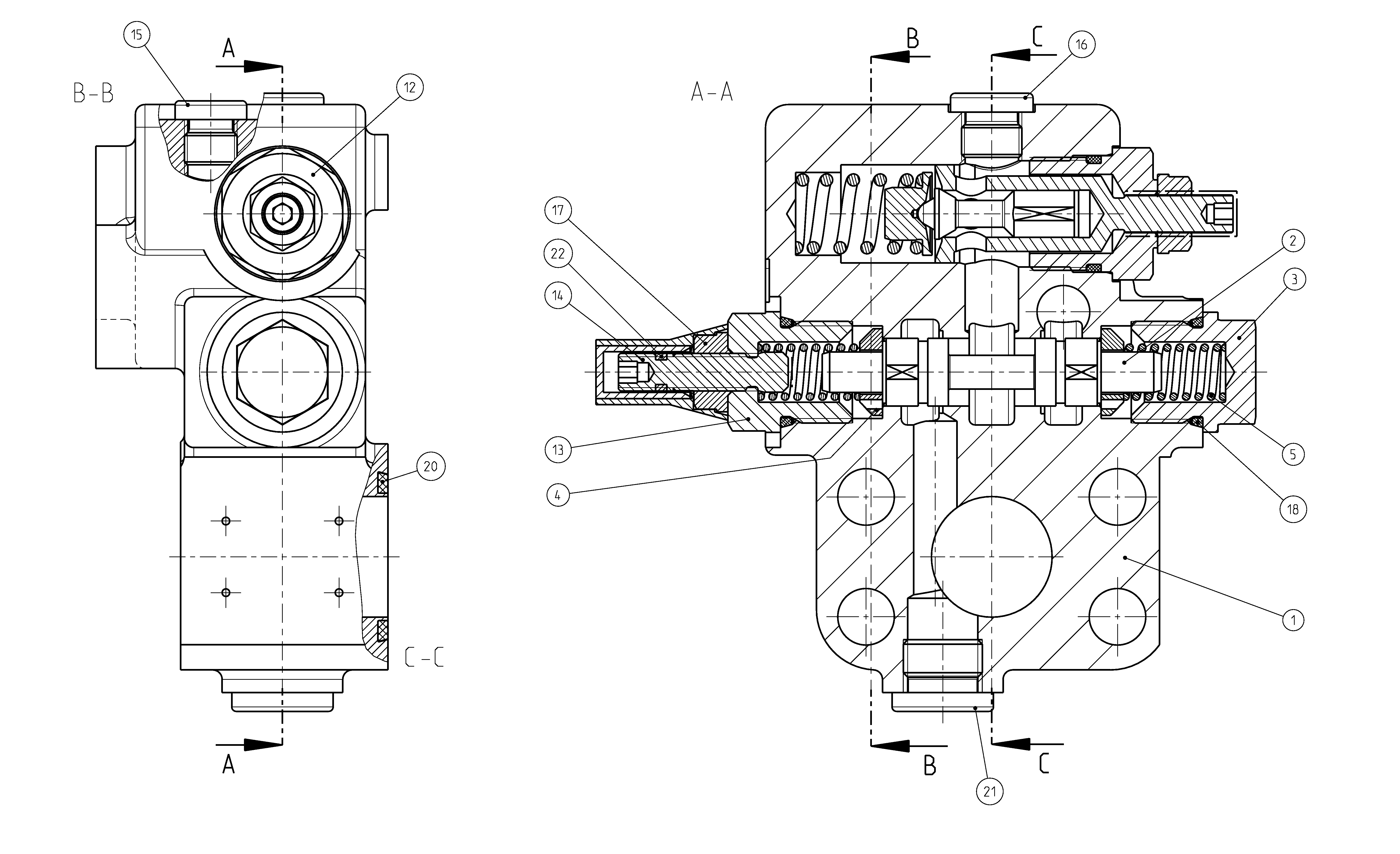

FLUSH/BOOST PRESSURE VALVER902228727
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902083457 | HOUSING | 1 | ||
| R909445139 | FLUSHING PISTON | 1 | ||
| R909445138 | SCREW PLUG | 1 | ||
| R909445140 | SPRING DISK | 2 | ||
| R909445123 | COMPRESSION SPRING | 2 | ||
| R902228944 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R902026803 | SCREW PLUG | 1 | ||
| R902215623 | ADJUSTING SCREW | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909153271 | SEALING NUT | 1 | ||
| R909830867 | O-RINGD | 2 | ||
| R909083809 | O-RINGD | 1 | ||
| R913011603 | SCREW PLUG | 1 | ||
| R902215624 | RING | 1 |
