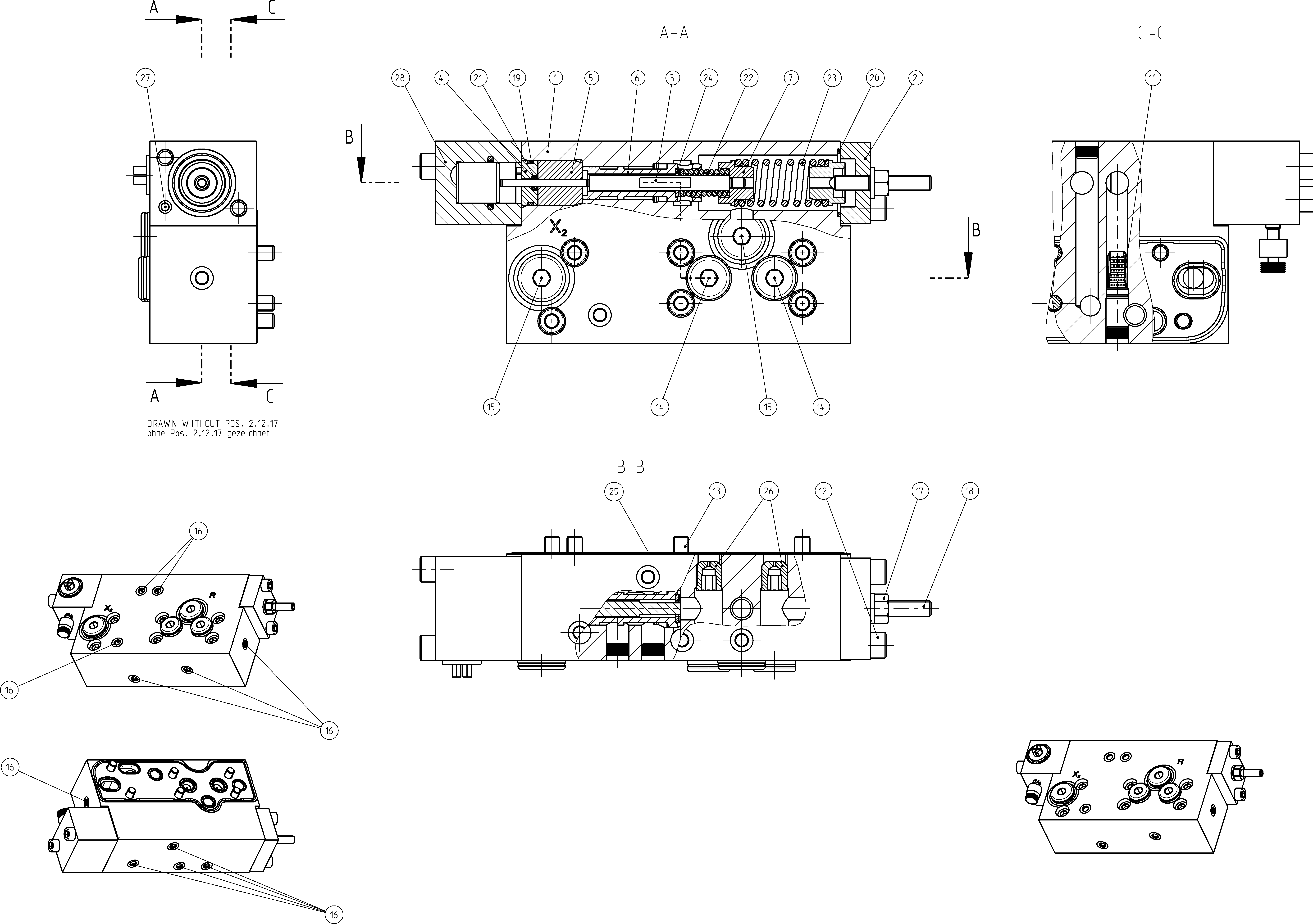

Baugruppe
CONTROL VALVER902228993
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902206139 | VALVE HOUSING | 1 | ||
| R902128551 | COVER | 1 | ||
| R902120919 | GUIDE ROD | 1 | ||
| R902120911 | WASHER | 1 | ||
| R902206004 | SEAL BUSHING | 1 | ||
| R902152162 | CONTROL PISTON | 1 | ||
| R909650315 | SPRING DISK | 2 | ||
| R902603777 | FILTER | 1 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603137 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831743 | SCREW PLUG | 2 | ||
| R909831482 | SCREW PLUG | 2 | ||
| R902603691 | SEALING PLUG | 11 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909154865 | SETSCREW | 1 | ||
| R909083734 | O-RING | 1 | ||
| R909830129 | O-RING | 1 | ||
| R909086301 | O-RING | 1 | ||
| R909444816 | COMPRESSION SPRING | 1 | ||
| R909444817 | COMPRESSION SPRING | 1 | ||
| R909157934 | SHIM RING | 3 | ||
| R913005554 | SEAL | 1 | ||
| R909426700 | NOZZLE | 2 | ||
| R902603684 | SEALING PLUG | 1 | ||
| R902128564 | INCHING DEVICE Stückliste der Baugruppe →L | 1 |
