Baugruppe

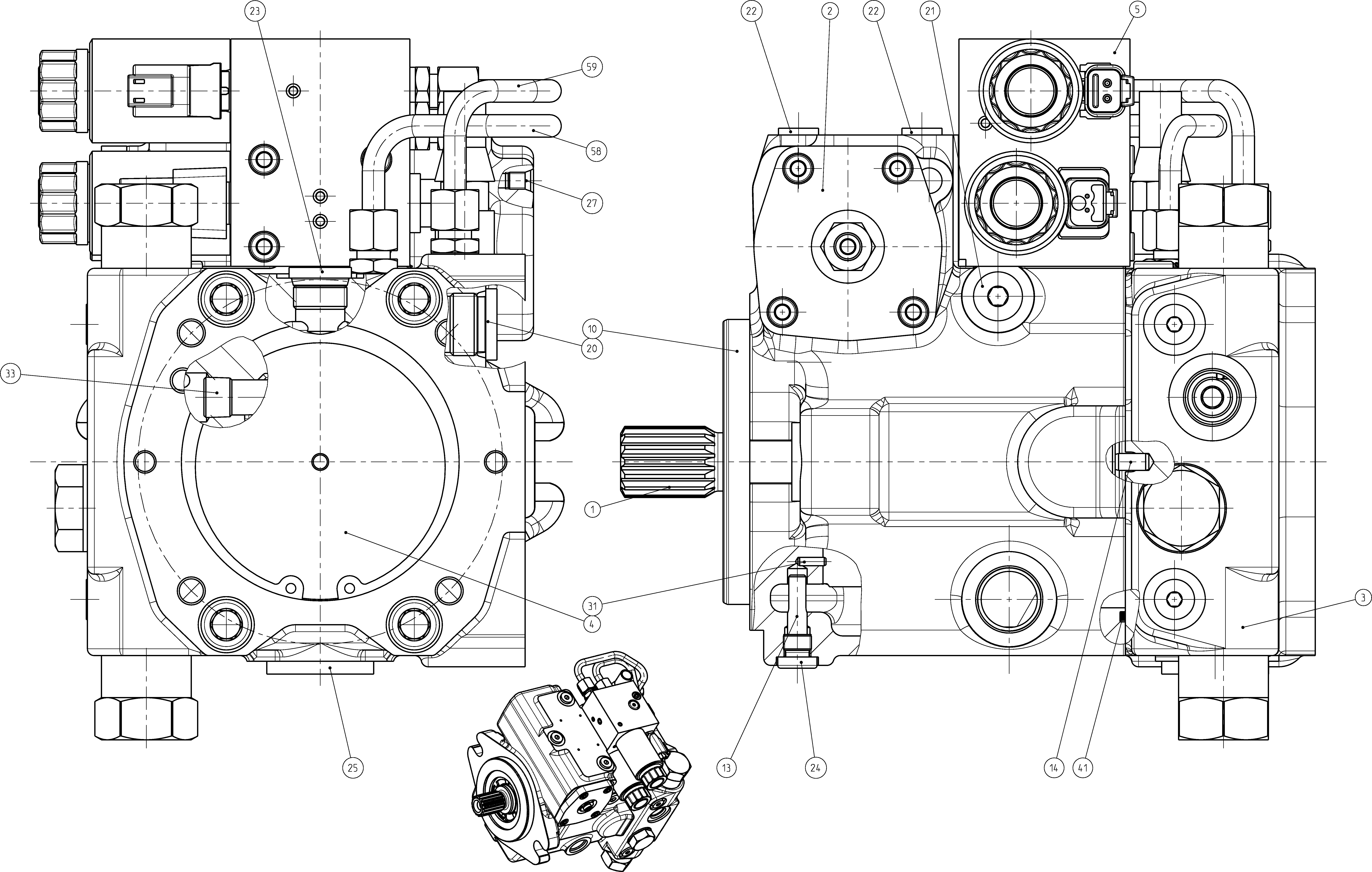

AXIAL-PISTON PUMPR902233144
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902102119 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902018973 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R902232242 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R902123716 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902215811 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R902015695 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009665 | STRAIGHT PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909087912 | SCREW PLUGD | 1 | ||
| R909086547 | O-RINGD | 1 | ||
| R902228646 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| R902228650 | HYDRAULIC LINE Stückliste der Baugruppe →L | 1 | ||
| 98 | R902095562 | SEAL KIT | 1 |
