Baugruppe

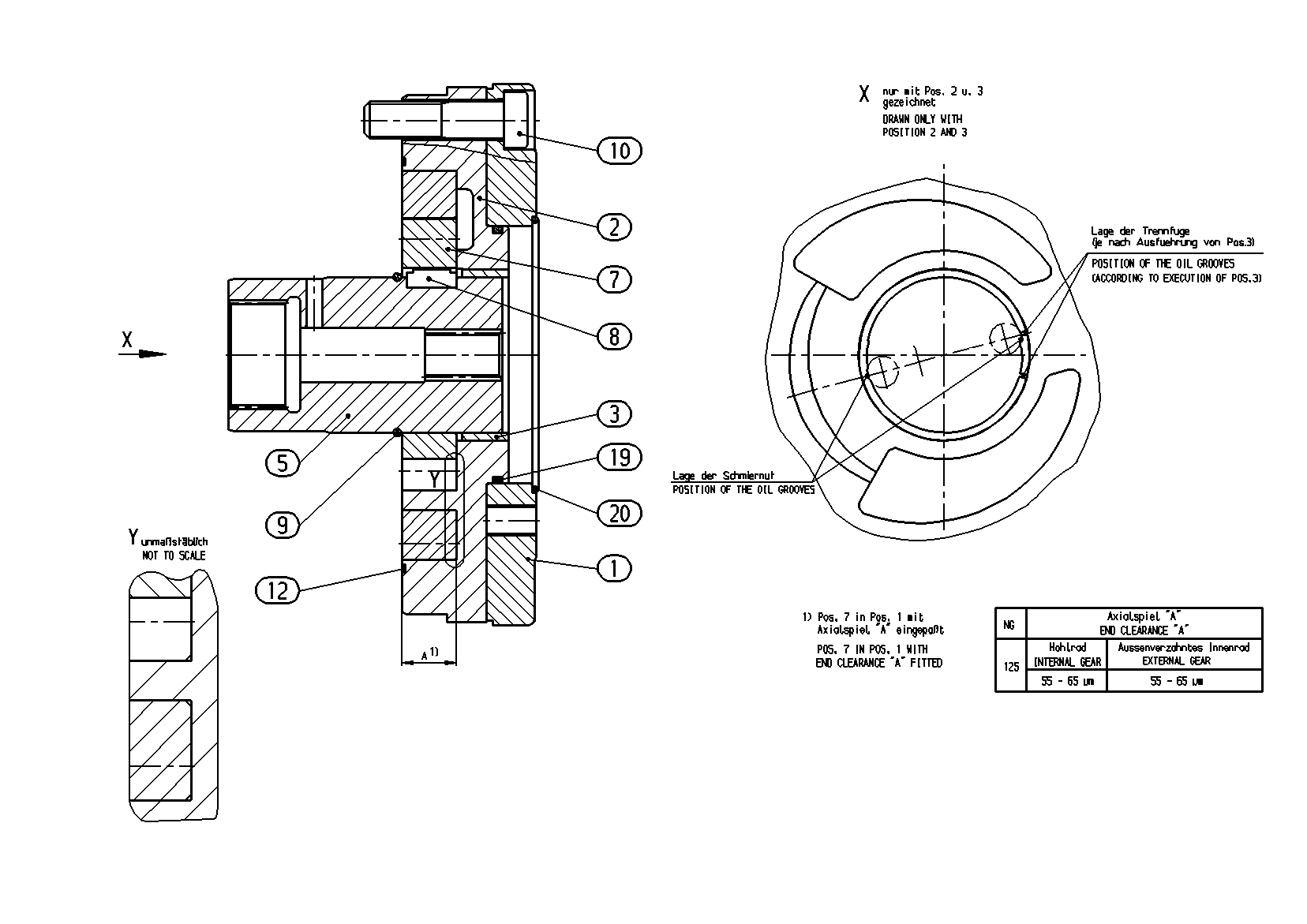

INTERNAL GEAR PUMPR902234843
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902260539 | INTERMEDIATE FLANGE | 1 | ||
| R902071495 | PUMP COVER | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R902097978 | THROUGH DRIVE SHAFT | 1 | ||
| R902085109 | WHEEL SET | 1 | ||
| R902105557 | PARALLEL KEY | 1 | ||
| R909154019 | SNAP RING | 1 | ||
| R909083207 | SOCKET HEAD CAP SCREW | 4 | ||
| R913026809 | KANTSEALD | 1 | ||
| R909083790 | O-RINGD | 1 | ||
| R913044774 | O-RINGD | 1 |
