Baugruppe

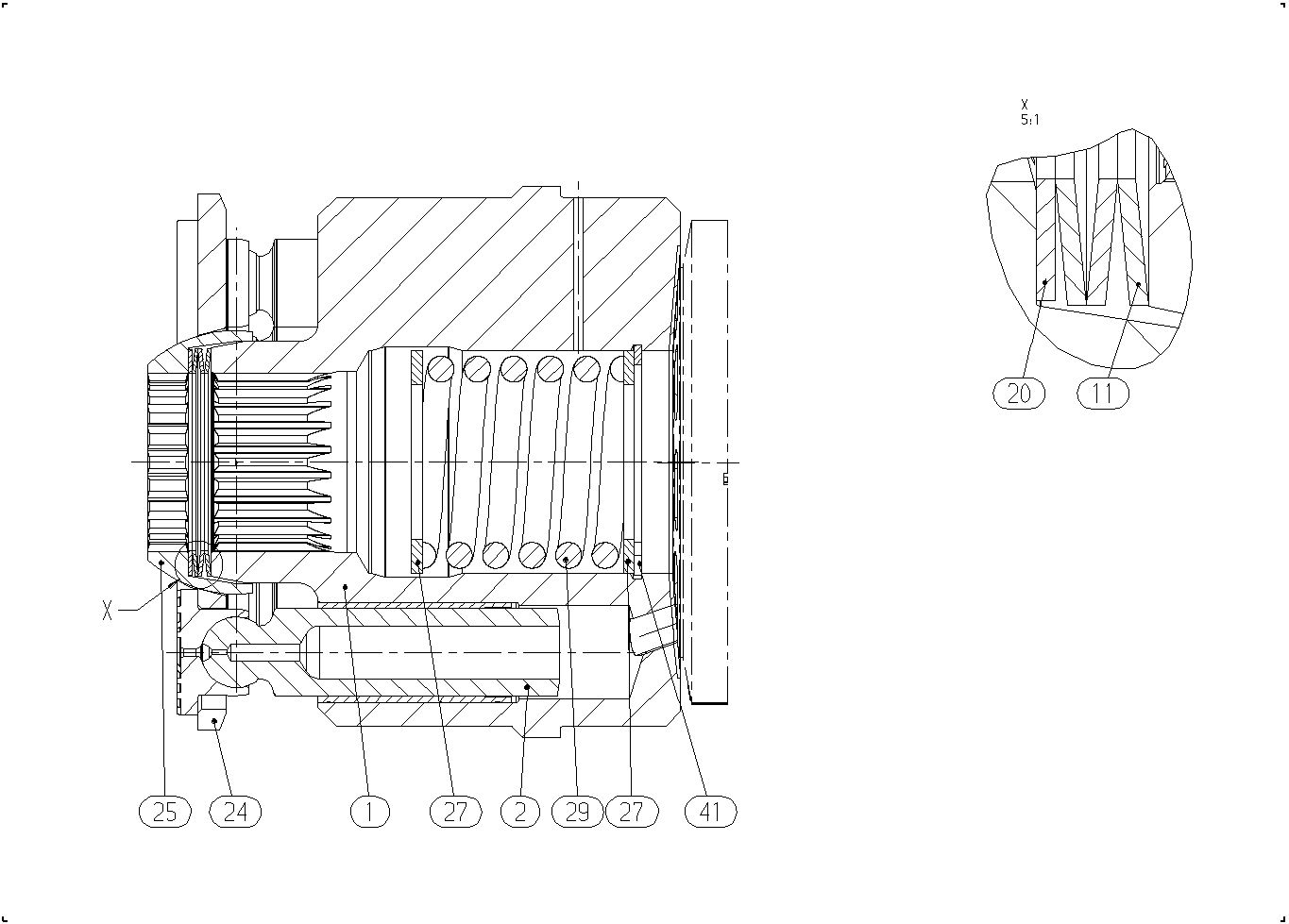

ROTARY GROUPR902244321
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902108569 | CYLINDER | 1 | |
| 2 | R902118529 | PISTON PAD | 9 | |
| 11 | R902188088 | CUP-SPRING STACK | 1 | |
| R902096234 | SHIM RING | 1 | ||
| R902096235 | SHIM RING | 1 | ||
| R902096236 | SHIM RING | 1 | ||
| R902096237 | SHIM RING | 1 | ||
| R902205415 | RETAINING PLATE | 1 | ||
| R902240835 | RETAINING BALL | 1 | ||
| R902152903 | WASHER | 2 | ||
| 29 | R902096389 | COMPRESSION SPRING | 1 | |
| R909151260 | RETAINING RING | 1 |
