Baugruppe

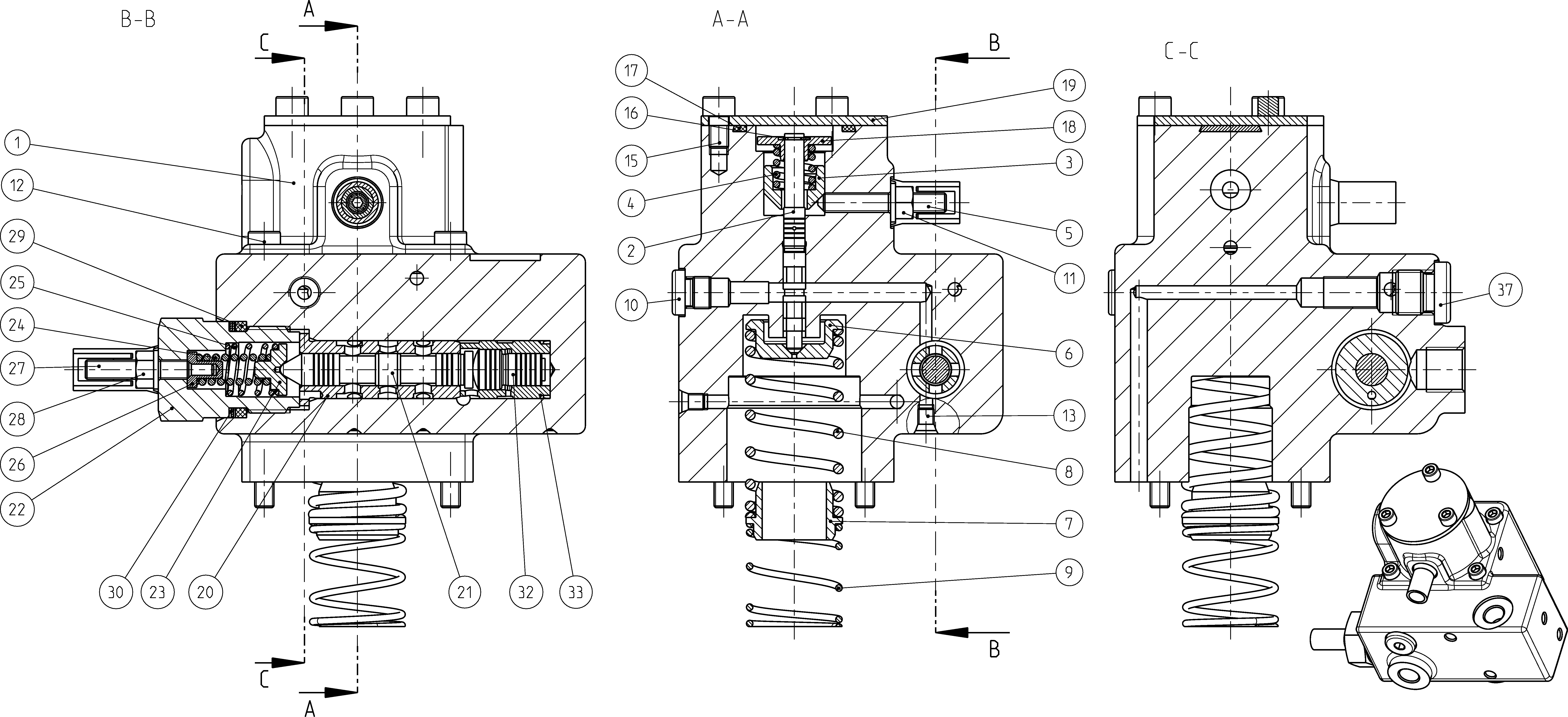

CONTROL UNITR902253328
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902230389 | CONTROL HOUSING | 1 | ||
| R902221973 | CONTROL PISTON | 1 | ||
| R902221974 | SPRING BUSH | 1 | ||
| R902227395 | COMPRESSION SPRING | 1 | ||
| R909154865 | SETSCREW | 1 | ||
| R902094546 | SPRING DISK | 1 | ||
| R909445069 | SPRING DISK | 1 | ||
| R902042253 | COMPRESSION SPRING | 1 | ||
| R902042254 | COMPRESSION SPRING | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909083017 | SOCKET HEAD CAP SCREW | 3 | ||
| R909085810 | LOCKING WASHER | 1 | ||
| R909086730 | O-RINGD | 1 | ||
| R902227394 | SPRING DISK | 1 | ||
| R902221977 | COVER | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R902009684 | CONTROL PISTON | 1 | ||
| R909435552 | SCREW PLUG | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R902221507 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909083797 | O-RINGD | 1 | ||
| R909087626 | BACKUP RINGD | 1 | ||
| R902033448 | POSITIONING PISTON | 1 | ||
| R902163546 | ADJUSTING BUSH | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
