Baugruppe

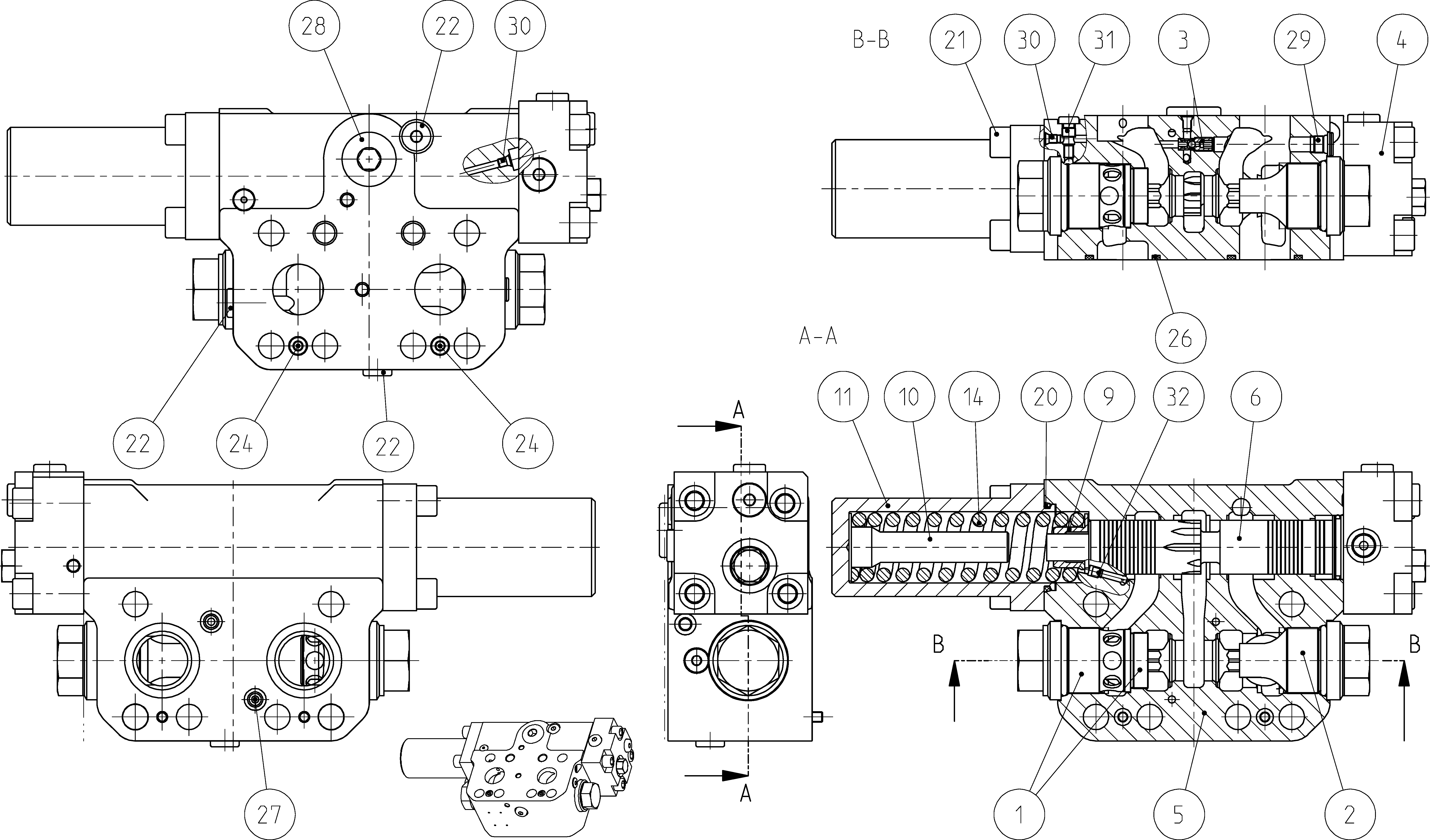

BRAKE VALVER902254883
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902048839 | VALVE Stückliste der Baugruppe →L | 1 | ||
| R902270023 | VALVE Stückliste der Baugruppe →L | 1 | ||
| R902042017 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902254884 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902272798 | HOUSING | 1 | ||
| R902261884 | BRAKE PISTON | 1 | ||
| R902236298 | SPRING DISK | 1 | ||
| R902050942 | SPRING BOLT | 1 | ||
| R902050928 | COVER | 1 | ||
| R902156662 | COMPRESSION SPRING | 1 | ||
| R902600675 | O-RING | 1 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156650 | SCREW PLUG | 3 | ||
| R909830902 | SOCKET HEAD CAP SCREW | 2 | ||
| R909154053 | O-RING | 2 | ||
| R902601483 | O-RING | 2 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R902601874 | SCREW PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909156863 | SCREW PLUG | 1 | ||
| R909150818 | SETSCREW | 1 |
