Baugruppe

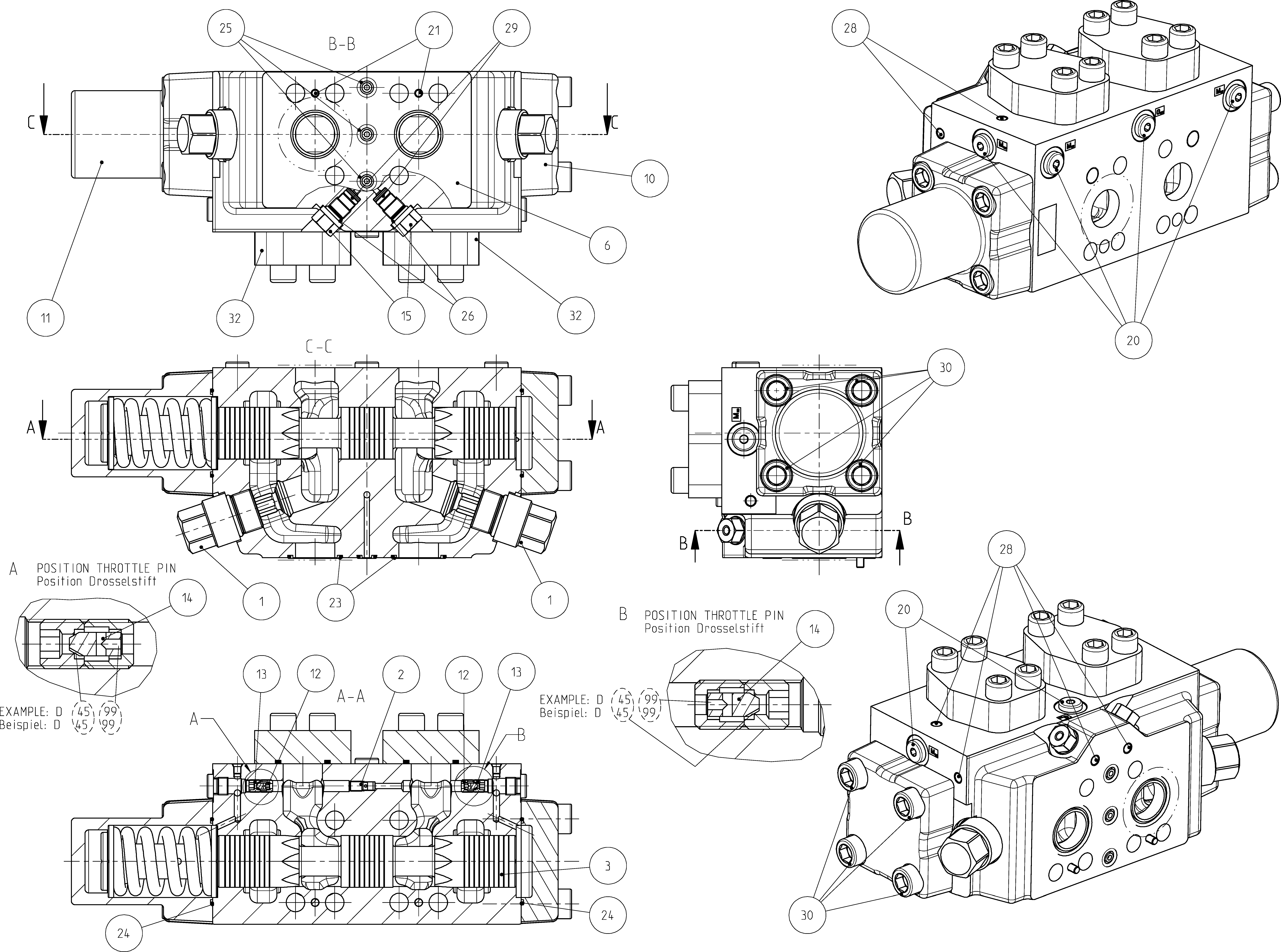

BRAKE VALVER902272608
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902236090 | VALVE Stückliste der Baugruppe →L | 2 | ||
| R902042017 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902254925 | BRAKE PISTON Stückliste der Baugruppe →L | 1 | ||
| R902239344 | HOUSING | 1 | ||
| R902239406 | COVER | 1 | ||
| R902239410 | COVER | 1 | ||
| R909400263 | THROTTLE SCREW | 2 | ||
| R909400264 | THROTTLE SCREW | 2 | ||
| R909425867 | THROTTLE PIN | 2 | ||
| R902228876 | SCREW PLUG | 2 | ||
| R909153930 | SCREW PLUG | 6 | ||
| R910409901 | SOCKET HEAD CAP SCREW | 2 | ||
| R909156361 | O-RING | 2 | ||
| R913036537 | O-RING | 2 | ||
| R909086765 | O-RING | 3 | ||
| R909830858 | O-RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909152688 | O-RING | 2 | ||
| R909083133 | SOCKET HEAD CAP SCREW | 8 | ||
| R900013792 | BLANK FLANGE | 2 | ||
| 98 | R902228807 | SEAL KITD | 1 |
