Baugruppe

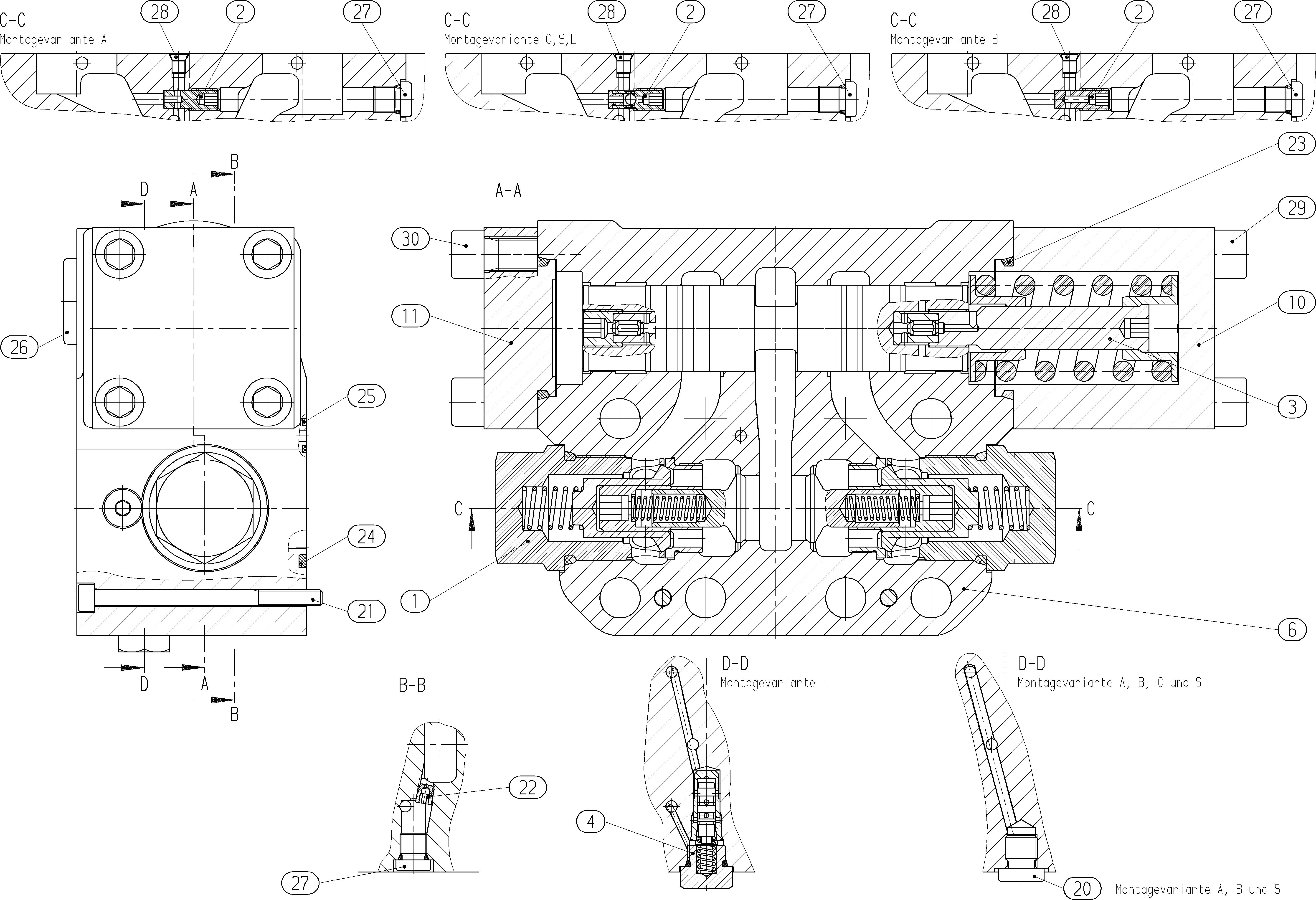

BRAKE VALVER902272842
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902281171 | VALVE Stückliste der Baugruppe →L | 2 | ||
| R902042017 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R902272598 | BRAKE PISTON Stückliste der Baugruppe →L | 1 | ||
| R902272792 | HOUSING | 1 | ||
| 10 | R902049037 | COVER | 1 | |
| 11 | R902049038 | COVER | 1 | |
| R909156650 | SCREW PLUG | 1 | ||
| R909830902 | SOCKET HEAD CAP SCREW | 2 | ||
| R909831347 | PLUG | 1 | ||
| R902600675 | O-RING | 2 | ||
| R909154053 | O-RING | 2 | ||
| R902601483 | O-RING | 2 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R902601874 | SCREW PLUG | 2 | ||
| 28 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 29 | R909153800 | SOCKET HEAD CAP SCREW | 4 | |
| R909083089 | SOCKET HEAD CAP SCREW | 4 |
