Baugruppe

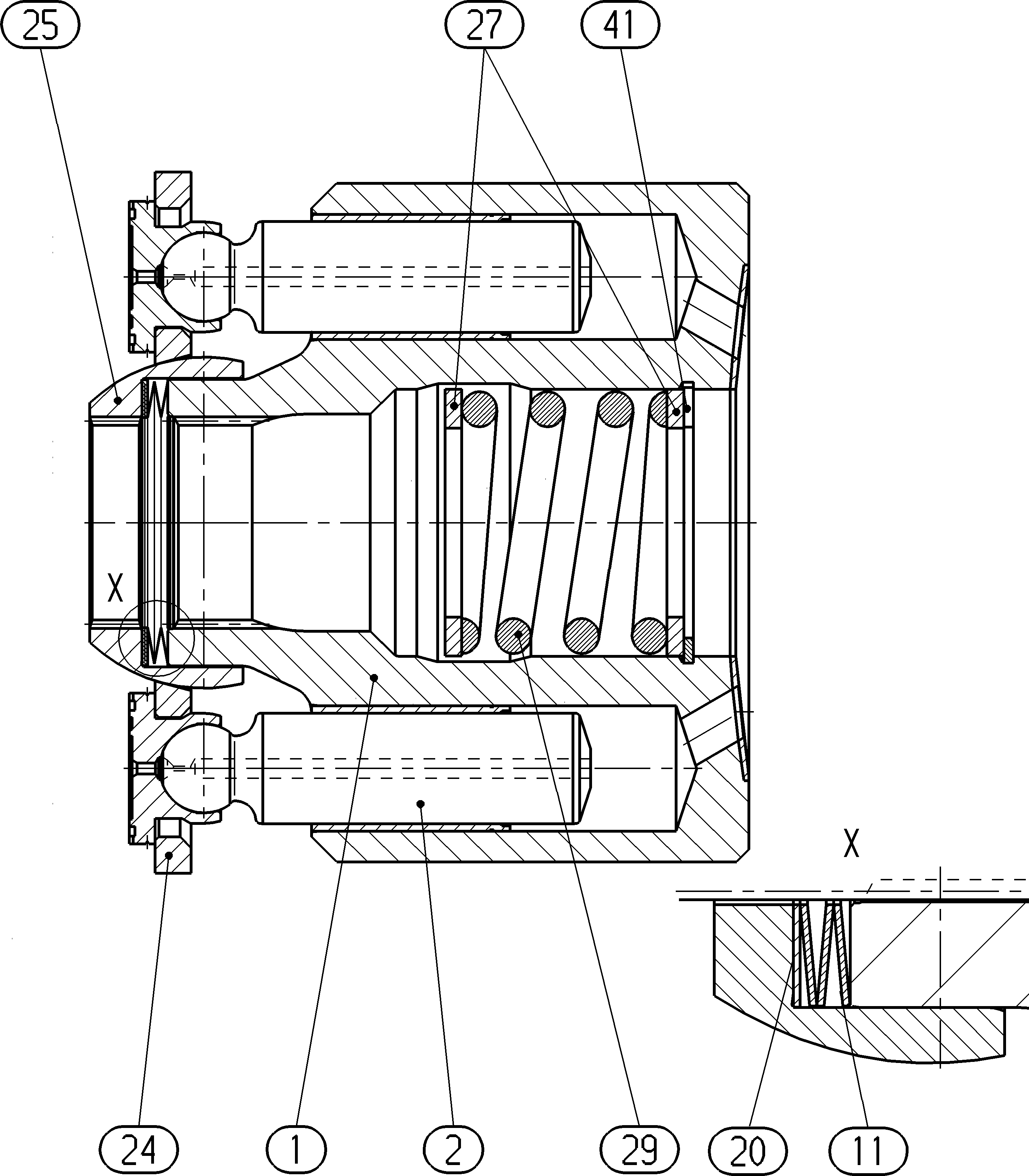

ROTARY GROUPR902273651
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902252004 | CYLINDER | 1 | |
| R909414515 | PISTON PAD | 9 | ||
| 11 | R902192958 | CUP-SPRING STACK | 1 | |
| R902273685 | SHIM RING | 1 | ||
| R902273684 | SHIM RING | 1 | ||
| R902273683 | SHIM RING | 1 | ||
| R902273682 | SHIM RING | 1 | ||
| R902272296 | RETAINING PLATE | 1 | ||
| R902272295 | RETAINING BALL | 1 | ||
| R909449885 | WASHER | 2 | ||
| R909435649 | COMPRESSION SPRING | 1 | ||
| R909084556 | RETAINING RING | 1 |
