Baugruppe

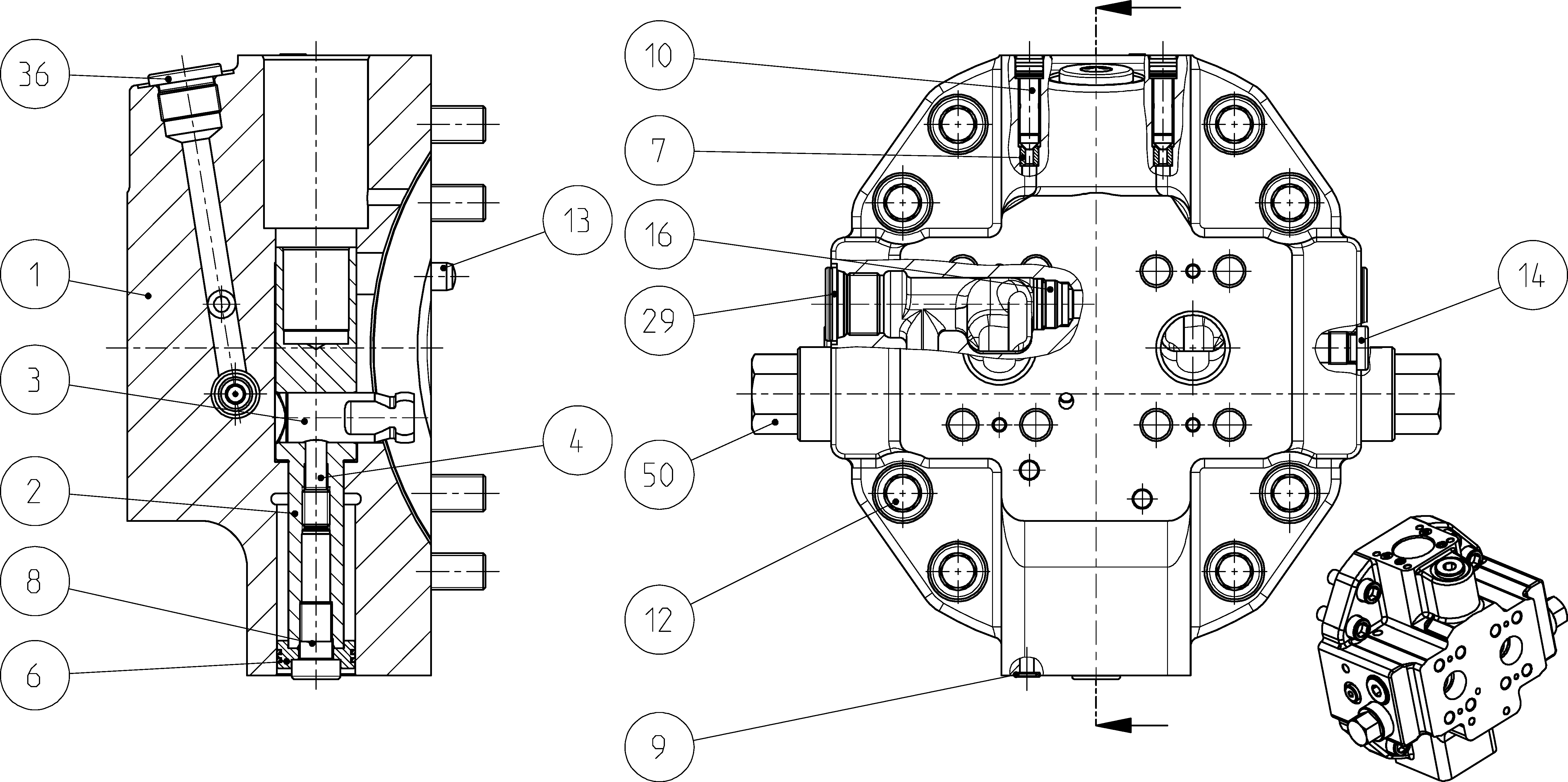

COVER PLATER902276259
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902270368 | COVER PLATE | 1 | ||
| R909921435 | POSITIONING PISTON | 1 | ||
| R909424057 | POSITIONING STUD | 1 | ||
| R909445016 | SETSCREW | 1 | ||
| R902102907 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 3 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R913068740 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R901422741 | CHECK VALVE | 2 | ||
| R902601712 | SCREW PLUGD | 2 | ||
| R909156989 | SCREW PLUGD | 1 | ||
| R902156676 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 |
