Baugruppe

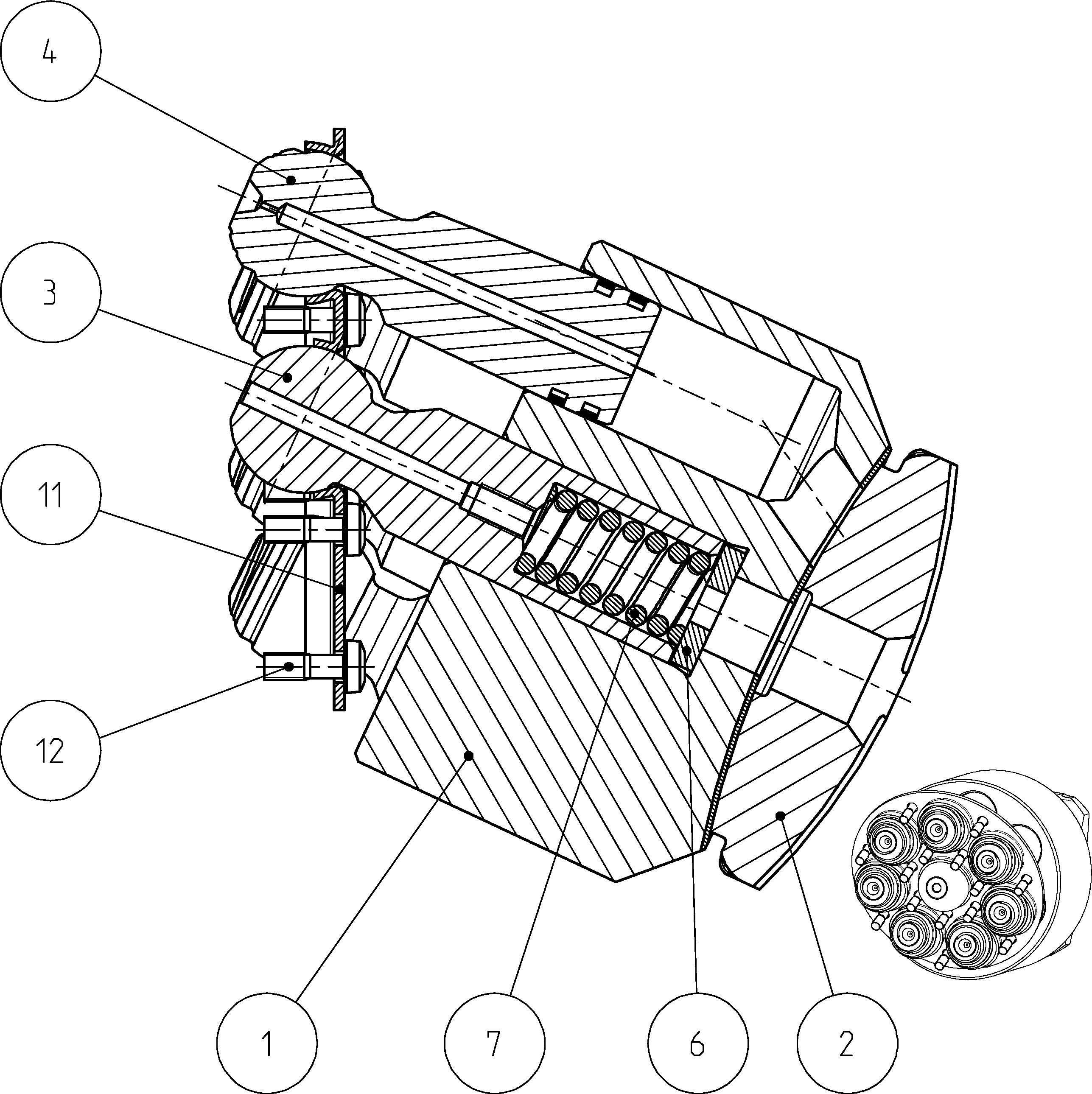

ROTARY GROUPR902276476
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909650689 | CYLINDER | 1 | |
| 2 | R902273407 | CONTROL LENS | 1 | |
| 3 | R909921604 | CENTER PIN | 1 | |
| R902036677 | PISTON | 7 | ||
| 6 | R902077201 | ADJUSTMENT SHIM Stückliste der Baugruppe →L | 1 | |
| 7 | R909921583 | COMPRESSION SPRING | 1 | |
| 11 | R902036644 | RETAINING PLATE | 1 | |
| 12 | R902602715 | PAN-HEAD SCREW | 7 |
