Baugruppe

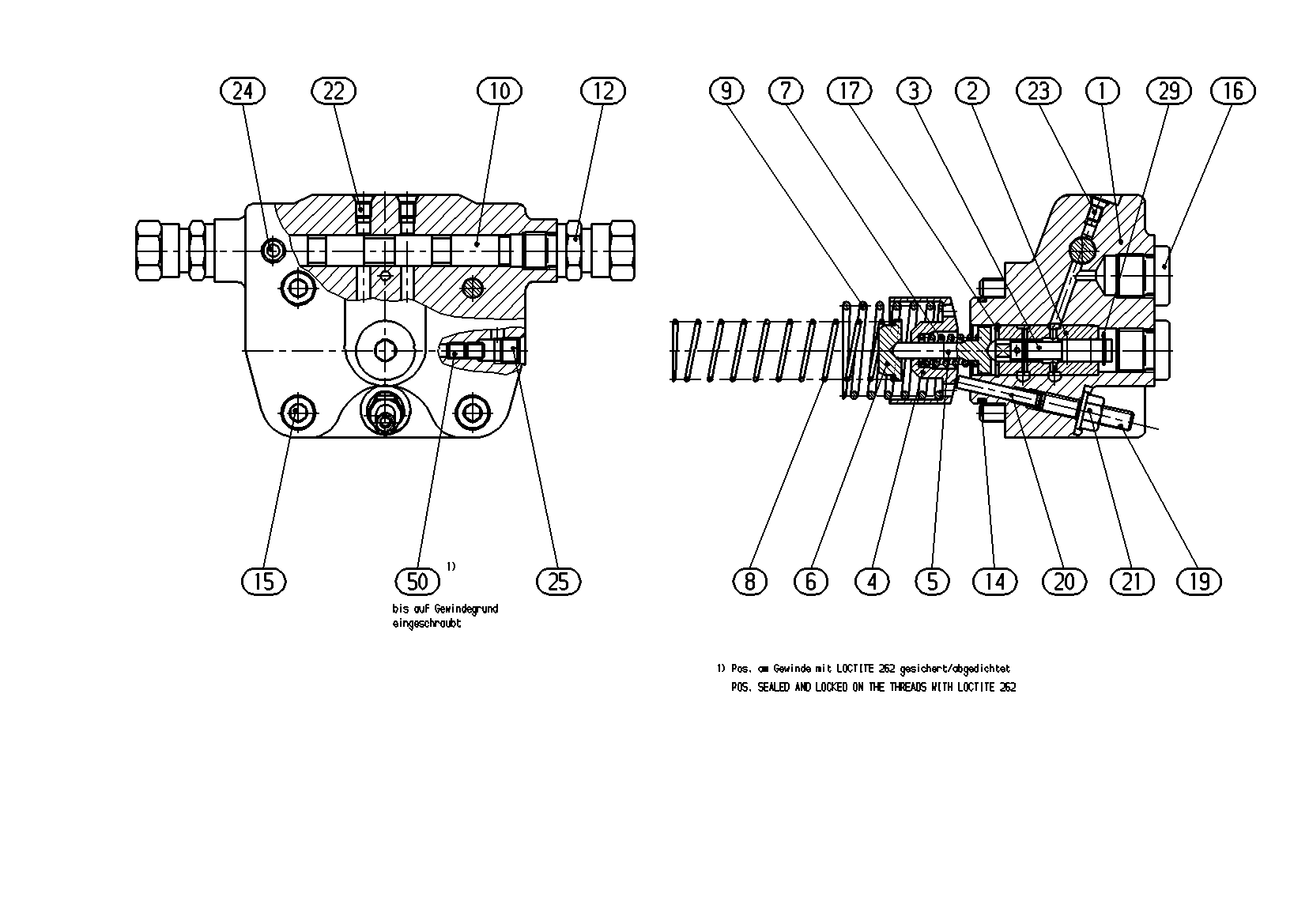

CONTROL PARTR902277995
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909921543 | CONTROL HOUSING | 1 | ||
| R909417512 | CONTROL SLEEVE | 1 | ||
| R909430747 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909436701 | COMPRESSION SPRING | 1 | ||
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909420720 | SLIDE | 1 | ||
| R909415641 | THREADED REDUCING STUD | 2 | ||
| R909085560 | O-RINGD | 1 | ||
| 15 | R909831514 | SOCKET HEAD CAP SCREW | 4 | |
| R913044793 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| 19 | R909152427 | SETSCREW | 1 | |
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUGD | 5 | ||
| R900078091 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R909085812 | LOCKING WASHER | 1 | ||
| R909083489 | SETSCREW | 4 |
