Baugruppe

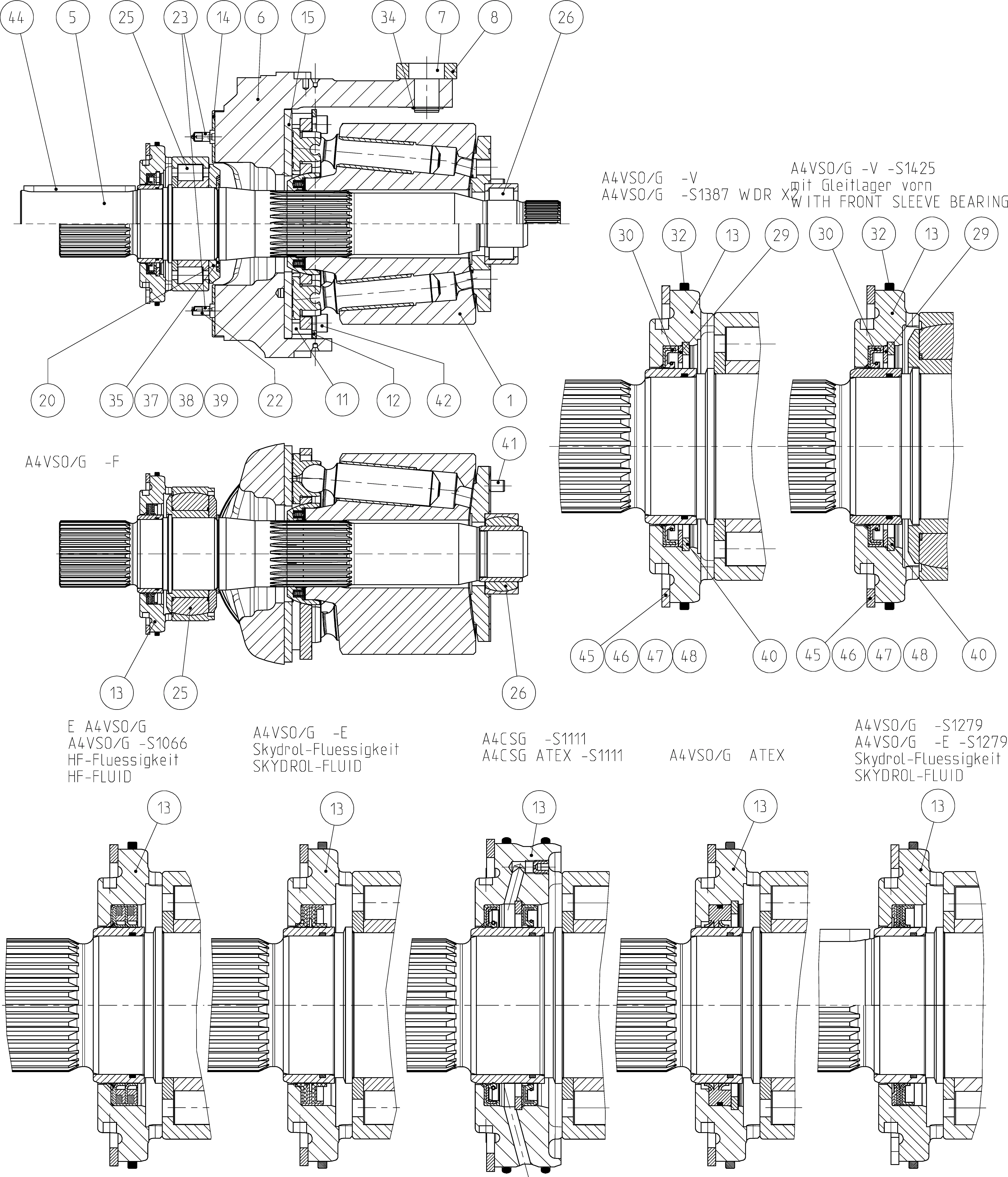

ROTARY GROUPR902405027
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902580159 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R910996952 | DRIVE SHAFT | 1 | ||
| R910796433 | SWASH PLATE | 1 | ||
| R910797332 | DRIVER PIVOT | 1 | ||
| R910923656 | SLIDER | 1 | ||
| 11 | R910797367 | SPACER SEGMENT | 2 | |
| 12 | R902573710 | SEGMENT | 2 | |
| 13 | R902580686 | SEALING RING KIT | 1 | |
| R910946522 | BEARING SHELL | 2 | ||
| 15 | R910903603 | SLIDING DISC | 1 | |
| R910993496 | FEED WHEEL | 1 | ||
| 22 | R910949038 | SETTING SCREW | 1 | |
| 23 | R910932882 | SETTING SCREW | 1 | |
| 25 | R902572598 | CYL. ROLLER BEARING | 1 | |
| R902581716 | CYL. ROLLER BEARING | 1 | ||
| 34 | R910126691 | RETAINING RING | 1 | |
| 35 | R910114677 | RETAINING RING | 1 | |
| 37 | R910991731 | RETAINING RING | 1 | |
| 38 | R910991733 | RETAINING RING | 1 | |
| 39 | R910991734 | RETAINING RING | 1 | |
| 41 | R913000822 | STRAIGHT PIN | 1 | |
| 42 | R902650865 | SOCKET HEAD CAP SCREW | 4 | |
| 44 | R910244848 | PARALLEL KEY | 1 |
