Baugruppe

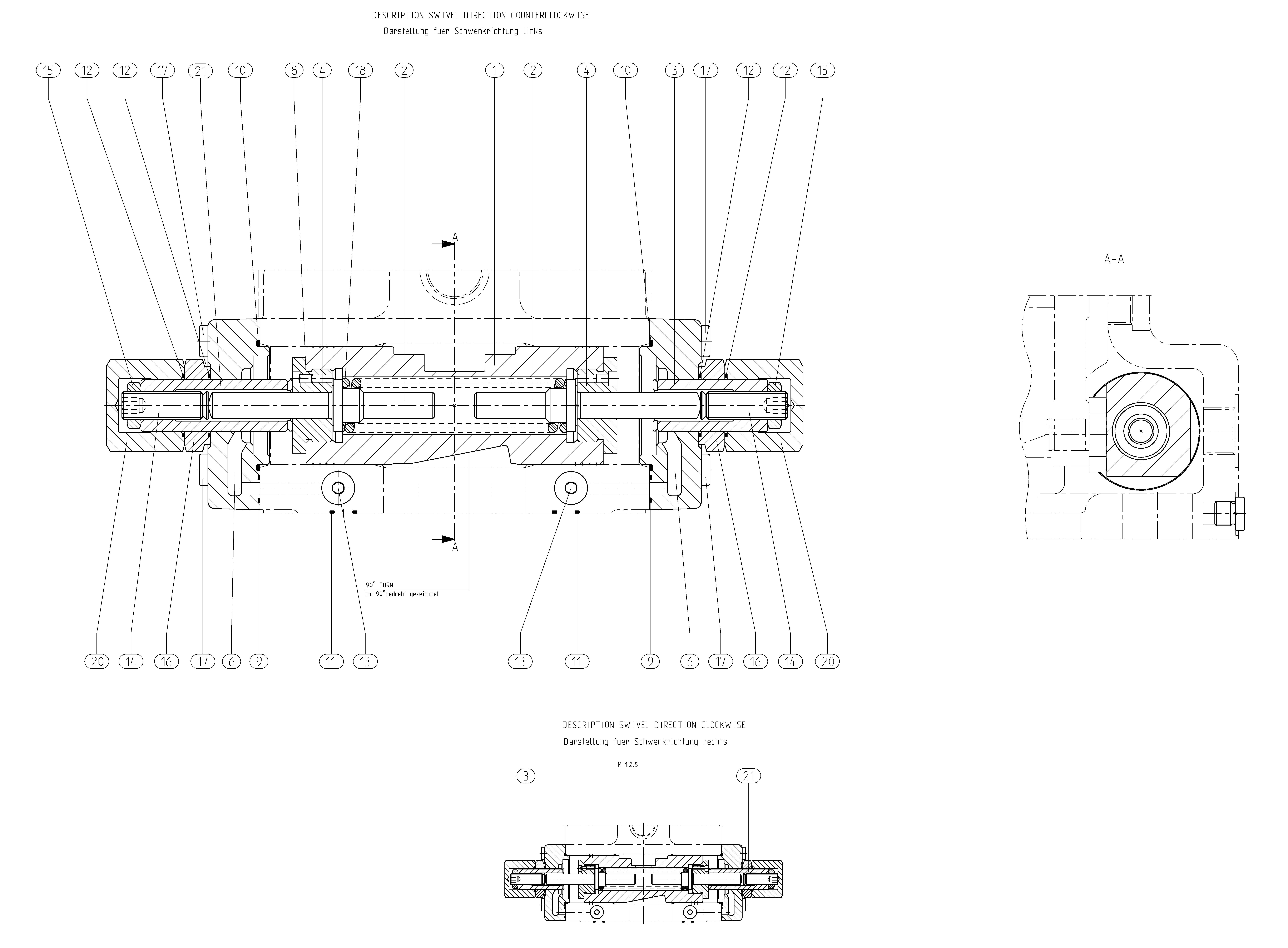

ADJUSTING PIECER902408961
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910901233 | ADJUSTING PISTON | 1 | ||
| R910936324 | PRESSURE PISTON | 2 | ||
| R902519608 | STOP SCREW | 1 | ||
| R910922099 | PISTON GUIDE | 2 | ||
| R910943710 | PISTON HOUSING | 2 | ||
| R910118818 | SETSCREW | 1 | ||
| R910916202 | O-RING | 2 | ||
| R902650322 | R-RING | 2 | ||
| R910942814 | R-RING | 2 | ||
| R910756598 | O-RING | 4 | ||
| R909153930 | SCREW PLUG | 2 | ||
| R902519562 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| R910902817 | NUT | 2 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 8 | ||
| R910922048 | COMPRESSION SPRING | 1 | ||
| R910902818 | CAP NUT | 2 | ||
| R902519609 | STOP SCREW | 1 |
